XCMG

Explore durable loader options for construction equipment needs. Built for heavy-duty performance, efficiency, and reliable material handling.

XCMG LW300KN Wheel Loader

Operating Weight: 10,900 kg
Engine Power: 92 kW (123 hp)
Bucket Capacity: 1.5 m³


Explore the XCMG LW300KN wheel loader with a 3-ton rated load, 92 kW engine and 130 kN breakout force. Built for earthmoving and aggregate handling, it offers a fast 9.3-second hydraulic cycle. View specifications and key features.
Get a Quote

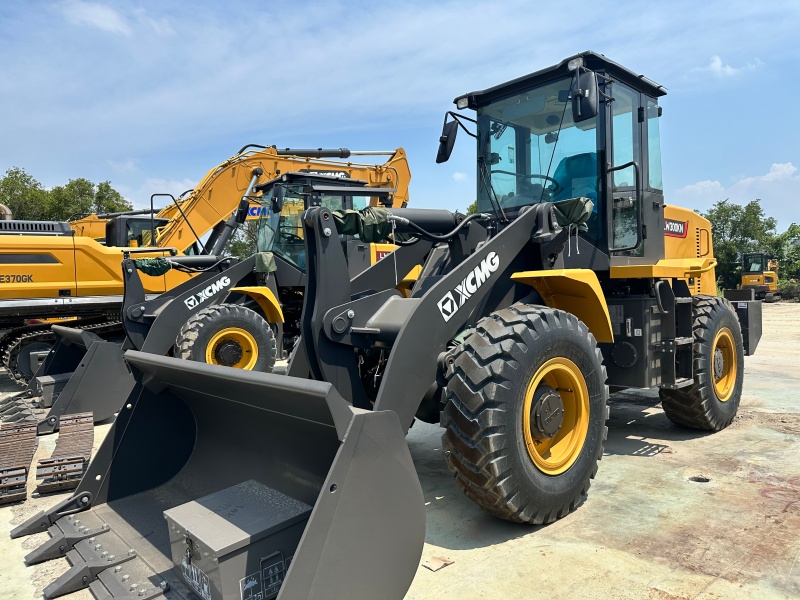

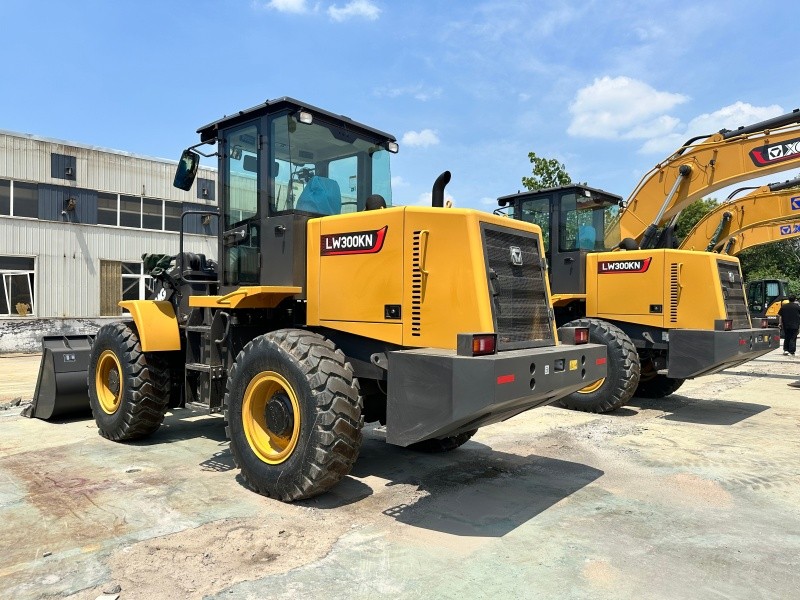

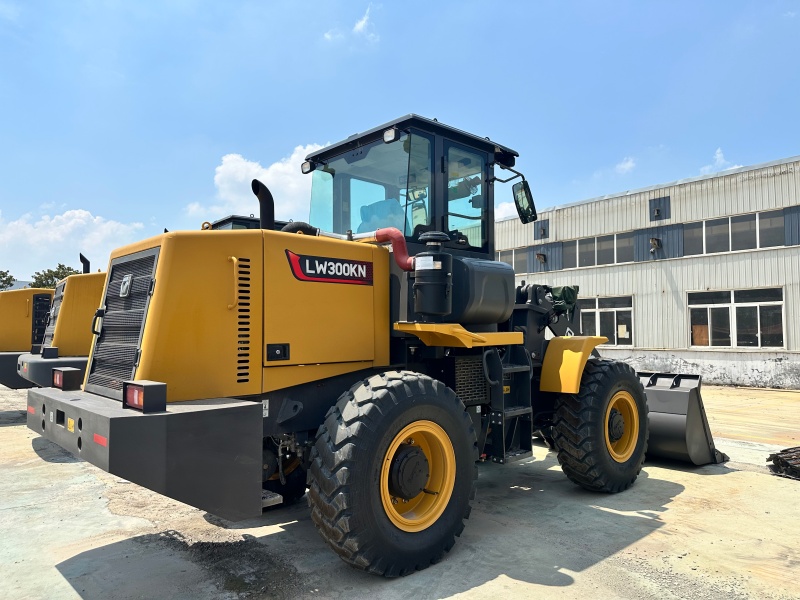

XCMG LW300KN Wheel Loader

Product Overview

The Brand New XCMG LW300KN is a classic 3-ton high-efficiency wheel loader engineered for earthmoving, aggregate yards, sand and gravel handling, and general construction site loading. Powered by a heavy-duty 92 kW low-speed engine matched with XCMG's reinforced 50-type planetary power shift transmission and heavy-load drive axles, the LW300KN delivers an impressive breakout force of 130 kN, rapid hydraulic cycle times, and exceptional fuel economy under high-intensity working conditions.


XCMG LW300KN Wheel Loader


Key Product Features

  • High-Efficiency Energy-Saving Engine: 92 kW Weichai WP6G125E201 diesel engine delivers strong torque output at lower speeds for optimum fuel conservation.

  • Heavy-Duty Structural Frames: Super-strong front and rear structural frames optimized via finite element analysis to resist heavy torsional and bending loads.

  • Dual-Pump Merging Hydraulics: Dual-pump hydraulic system merges steering and working hydraulic flows, achieving a fast total hydraulic cycle time of 9.3 seconds.

  • Massive Digging Breakout Force: Optimized Z-bar linkage and U-shaped rocker arm deliver a powerful 130 kN breakout force with high-position automatic bucket leveling.

  • Ergonomic Full-View Cab: Full metal molded cab featuring seamless glass, noise insulation, and centralized electrical controls for maximum operator safety and comfort.


Technical Specifications

Parameter / ItemSpecification (Metric)
ModelXCMG LW300KN
Machine TypeHeavy-Duty Wheel Loader
Rated Operating Load3,000 kg
Operating Weight10,900 ± 200 kg
Engine ModelWeichai WP6G125E201 (Optional Yuchai YC6J125Z-T22)
Engine Rated Power92 kW @ 2,000 rpm
Emission StandardStage II / National II
Bucket Capacity1.5 – 2.5 m³
Max. Breakout Force130 kN
Dump Clearance (Max. Lift)2,770 – 3,260 mm
Dump Reach (Max. Lift)1,010 – 1,210 mm
Max. Hinge Pin Height3,830 mm
Overall Dimensions (L × W × H)7,245 × 2,482 × 3,320 mm
Wheelbase2,900 mm
Tread Width1,850 mm
Min. Turning Radius (Over Tires)5,170 mm
Hydraulic Cycle Time (Raise / Total)5.4 s / 9.3 s
Travel Speed (Forward Gear 1 / 2)12 / 38 km/h
Tire Specification17.5-25-12PR
Fuel Tank Capacity170 L
Hydraulic Tank Capacity175 L
EC9DD94E01BB6193BC635B9FF97E3DB2

FAQ

A:

All brand-new wheel loaders come with a standard manufacturer's warranty, typically covering 12 months or 2,000 operating hours (whichever comes first). Specific core components (such as the engine, transmission, and drive axles) are eligible for manufacturer-backed joint warranty or extended warranty coverage.

A:

Depending on the loader's overall dimensions and the requirements of the destination port, we offer the following shipping options:
Container Shipping (40HQ Container): Loaders weighing 3 tons or less (or those with the cab/tires removed) can fit into high-cube containers, saving on shipping costs.
Flat Rack Container: Suitable for medium-to-heavy loaders; requires no extensive disassembly.
Ro-Ro Ship (Roll-on/Roll-off): The loader is driven directly onto and off the vessel; ensures damage-free transport and offers the highest level of safety.
Breakbulk Ship: Suitable for bulk orders or large-sized loaders.

A:

We can recommend the optimal configuration based on your specific working environment (such as sand and gravel yards, mines, earthworks, ports and terminals, or agriculture, forestry, and livestock operations):
Standard Bucket: Suitable for general earthmoving and the loading/unloading of sand and gravel.
Rock Bucket: Features thickened lip and side plates and high-strength teeth; specifically designed for mining and highly abrasive operating conditions.
Light Material Bucket / High-Capacity Bucket: Suitable for handling low-density bulk materials such as coal, wood chips, and grain.
High Dump Bucket: Increases the dumping height; suitable for loading high-sided trucks or hoppers.

A:

Yes, all the construction machinery we sell is 100% brand-new and genuine. Each unit comes with an original manufacturer's certificate of conformity, a quality warranty, and complete technical documentation, and undergoes rigorous inspection and testing prior to shipment.

A:

We supply brand-new wheel loaders from globally renowned brands such as XCMG, SDLG, SANY, LIUGONG, CAT, SHANTUI, ZOOMLION, and DEVELON (formerly Doosan).
Our range covers models with rated capacities from 1.5 tons to 12 tons and above, with a focus on the market's most popular 3-ton, 5-ton, 6-ton, and 7-ton standard and heavy-duty models.
