Brand New ZOOMLION ZE135G Excavator

Operating Weight: 14,400 kg

Engine Power:100 kW  (134.1 hp)

Bucket Capacity: 0.55 m³

Explore the new ZOOMLION ZE135G crawler excavator with 134.1 hp Cummins power, compact design, and versatile performance for urban jobs.
Get a Quote
Brand New ZOOMLION ZE135G Excavator

Product Overview


The Brand New ZOOMLION ZE135G is a 14.4-ton G-series crawler excavator designed for urban construction, utility trenching, road maintenance, and general earthmoving applications. Powered by a fuel-efficient Cummins F3.8 engine generating 134.1 hp @ 2,200 rpm, the ZE135G combines high breakout force with enhanced jobsite safety and operator comfort. Equipped standard with CE-compliant boom and arm hose burst safety valves, right-side and rear-view cameras, a quiet low-noise cab , and auxiliary hydraulic flow settings managed directly via the cabin monitor, this machine delivers high operational versatility across various work attachments.

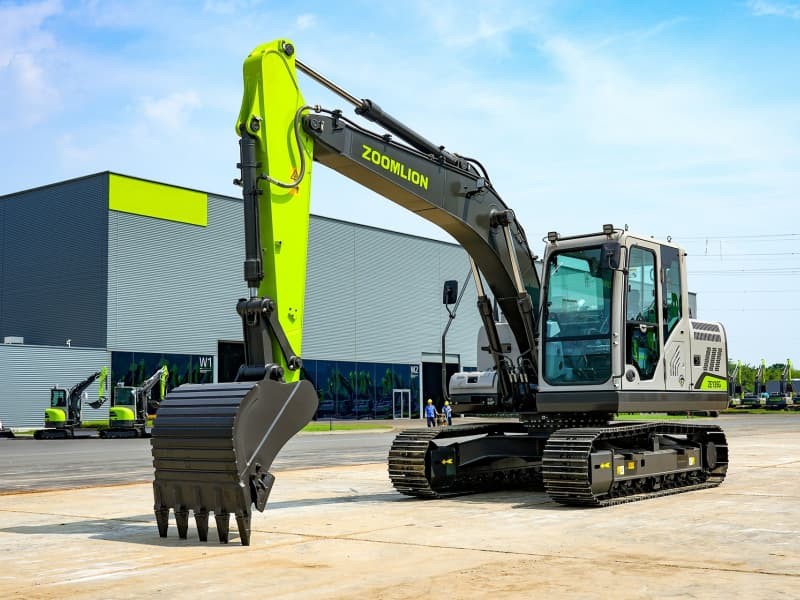

Zoomlion ZE135G Excavator


Key Product Features


  • Cummins F3.8 Power Plant: Delivers reliable horsepower and torque output matched with efficient fuel burn for lower daily operating expenses.

  • CE-Compliant Safety Package: Standard hose burst safety valves on both boom and arm cylinders prevent sudden drop risks; dual right/rear cameras expand site visibility.

  • Quiet & Ergonomic Cabin: Low-noise internal environment with reduced air duct drag and an optional heated air-suspension seat for operator comfort in cold weather.

  • Multi-Function Attachment Control: In-cab monitor allows operators to calibrate auxiliary hydraulic flow and pressure settings for hydraulic breakers, shears, and augers.

  • Compact Transport Frame: Transport width of 2,593 mm and length of 7,940 mm facilitate easier hauling between job sites.


Technical Specifications


ParameterMetric Value
Operating Weight14,400 kg
Engine Manufacturer / ModelCummins F3.8
Rated Engine Power100 kW @ 2,200 rpm
Standard Bucket Capacity0.55 m³
Max. Drawbar Pull130 kN
Travel Speed (High / Low)5.5 km/h / 3.1 km/h
Max. Digging Reach8,420 mm
Max. Digging Depth5,504 mm
Max. Digging Height8,466 mm
Max. Dumping Height5,885 mm
Overall Dimensions (L × W × H)7,940 × 2,593 × 2,939 mm
Tail Slewing Radius2,301 mm
Track Gauge / Track on Ground1,989 mm / 2,921 mm
In-Cab Noise Level<71 dB
EC9DD94E01BB6193BC635B9FF97E3DB2

FAQ

A:

Depending on the machinery's dimensions, tonnage, and the shipping route to the destination port, we typically select the most cost-effective and secure transport solution:
Container Shipping (Standard/High Cube): Suitable for small excavators and medium-sized excavators with partially disassembled booms.
Flat Rack Container: Suitable for medium-sized excavators that exceed standard height or width limits.
Ro-Ro (Roll-on/Roll-off) Ship: Equipment is driven directly on and off without disassembly, offering the highest level of safety.
Breakbulk Ship: Suitable for large mining excavators or bulk shipments.

A:

All brand-new excavators come with a standard manufacturer's warranty, typically covering 12 months or 2,000 operating hours (whichever comes first). Extended warranty periods may be available upon agreement for certain brands or specific model series.

A:

Yes. In addition to the standard bucket, we can configure various high-quality OEM or compatible attachments based on your operational needs, including:
Hydraulic Breaker
Hydraulic Quick Coupler
Grapple (for timber or stone)
Auger
Vibratory Compactor / Ripper

A:

You can provide our professional team with details regarding your specific application (such as land clearing, municipal works, mining, or road construction) and your budget requirements. Based on factors like operating depth, bucket capacity, and engine emission standards (Tier 2 / Tier 3 / Tier 4 / Stage V), we will recommend the most cost-effective and high-value brands and models for your needs.

A:

Yes, we guarantee that all construction machinery supplied is brand-new, original equipment (100% brand new), accompanied by complete original factory inspection certificates, technical specifications, and the manufacturer's quality warranty.

A:

We specialize in supplying brand-new construction machinery from a wide range of globally renowned brands, including XCMG, SANY, SDLG, CAT, SHANTUI, DEVELON (formerly Doosan), ZOOMLION, and LIUGONG.
We offer all currently manufactured models, ranging from mini excavators (1–6 tons) and medium-sized excavators (13–30 tons) to heavy-duty mining excavators (over 35 tons).
