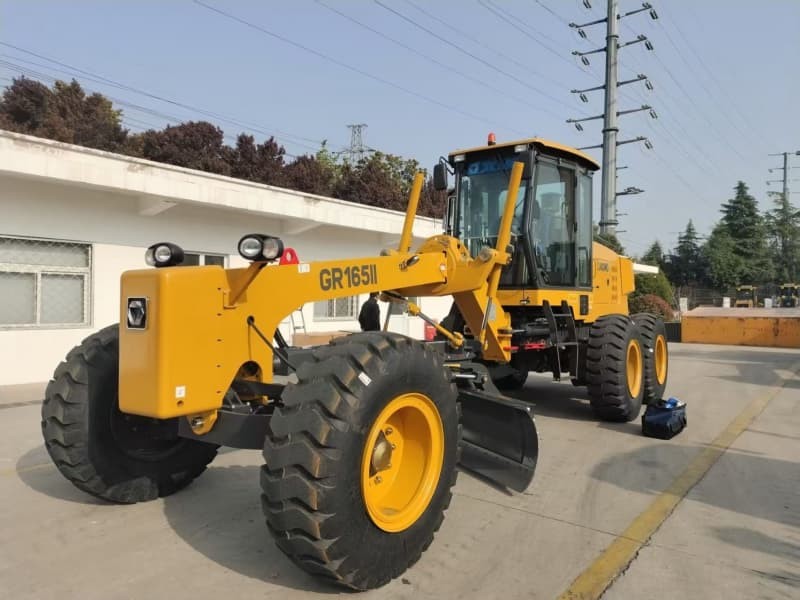

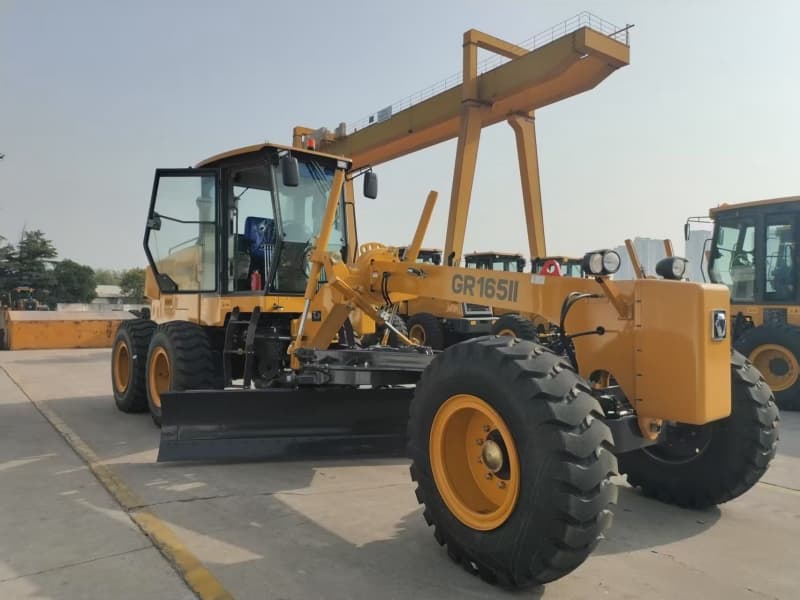

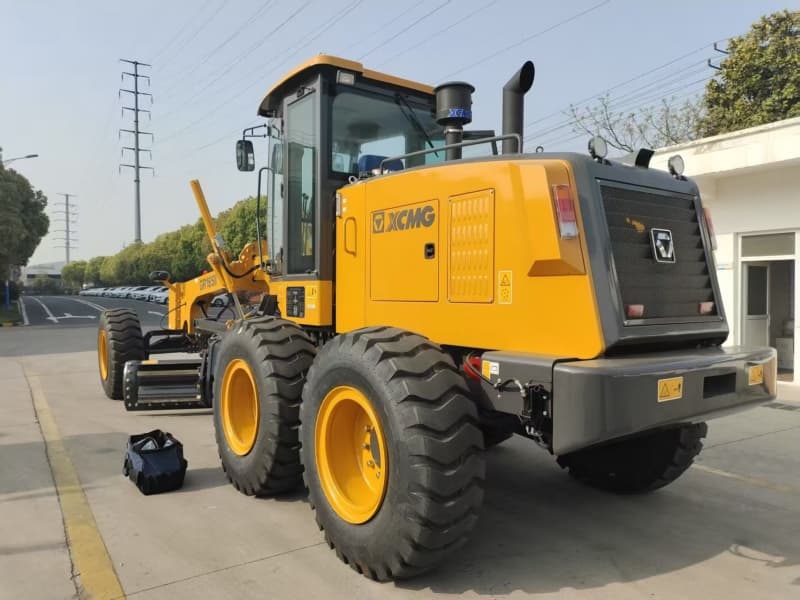

Brand New XCMG GR165 Motor Grader
Operating Weight: 15,000 kg
Engine Power:125 kW (167 hp)
Blade Capacity : 3,965 × 610 mm
Product Categories
leave a message
Product Overview
The Brand New XCMG GR165 is a high-performance 15.0-ton motor grader designed for road construction, airport runways, mining projects, farmland improvement, and snow removal. Powered by a 125 kW engine at 2,300 rpm and equipped with a 3,965 × 610 mm moldboard, the GR165 combines an electro-hydraulic powershift transmission with an articulated frame for outstanding maneuverability and precise grading control. Outfitted with a NO-SPIN self-locking differential rear axle and international-grade hydraulic components, it offers durable performance and multi-tool versatility across challenging work sites.
Key Product Features
High-Efficiency Powertrain: Powered by a 125 kW engine with high torque reserve and paired with an electro-hydraulic powershift transmission for smooth gear changes and efficient fuel use.
Precise Electro-Hydraulic Blade Control: Full hydraulic controls drive the 360°rotating moldboard, allowing a maximum cutting depth of 500 mm, ground clearance of 450 mm, and a 90° maximum blade position angle.
Superior Traction & Differential Lock: Features a three-section rear drive axle integrated with a NO-SPIN self-locking differential mechanism, delivering 77 kN of tractive force on loose or slippery terrain.
Agile Steering & Maneuverability: Combines front-wheel steering (± 50°) with frame articulation (± 27°) to achieve a tight 7.3 m minimum turning radius.
Technical Specifications
FAQ
All new motor graders come with a standard manufacturer’s warranty, typically valid for 12 months or 2,000 operating hours (whichever comes first). Extended warranty coverage for core components such as the engine, transmission, and drive axle may be available depending on the agreement.
Motor graders have relatively long bodies. Based on model dimensions and cost considerations, we offer the following shipping options:
Roll-on/Roll-off (Ro-Ro) Ship: The entire machine is driven onto and off the ship, ensuring damage-free transport and the highest level of safety.
Flat Rack Container: Loaded after dismantling the blade and some auxiliary components; suitable for regular liner services.
Breakbulk Ship: Suitable for bulk shipments of motor graders or ultra-heavy mining-grade models.
Container Disassembly Shipping (40HQ): Some small and medium-sized motor graders can be loaded into high-cube containers after removing the cab, front axle, and blade, significantly reducing ocean freight costs.
We can configure the optimal model based on your specific operating conditions:
Model and Drive Configuration: We offer rear-wheel drive (4x6 / 6x4) (cost-effective, suitable for general subgrade grading) and all-wheel drive (AWD / 6x6) (high traction, suitable for wet, slippery, muddy, and snowy conditions).
Work Equipment Options:
Moldboard: Available in 12-foot (3.66-meter) or 14-foot (4.27-meter) high-strength, wear-resistant models.
Front Dozer Blade: Suitable for light dozing and trenching operations at the front of the motor grader.
Mid/Rear Ripper/Scarifier: Used to break up hard surfaces, frozen ground, or hard rock layers.
We specialize in supplying brand-new motor graders from well-known brands such as XCMG (Xugong), SANY (Sany), SDLG (Lingong), SEM (Shangong Machinery), SHANTUI (Shantui), and LIUGONG (Liugong).
Global Support
Local teams and responsive
service, anytime, anywhere
Trusted Worldwide
Reliable quality and consistent
performance you can trust
Key Markets
Africa、Southeast Asia、Middle East、
Central & South America
Built for Tomorrow
Innovating today to build astronger
future together
Factory Direct Supply
Hundreds of customers visit
the factory every year.
Leave us a message.
Please describe your requirements in as much detail as possible, including fleet size, vehicle types and quantities, technical specifications, etc.
