XCMG

Explore durable bulldozer options for construction and earthmoving projects. Built for power, stability, and efficient site performance.

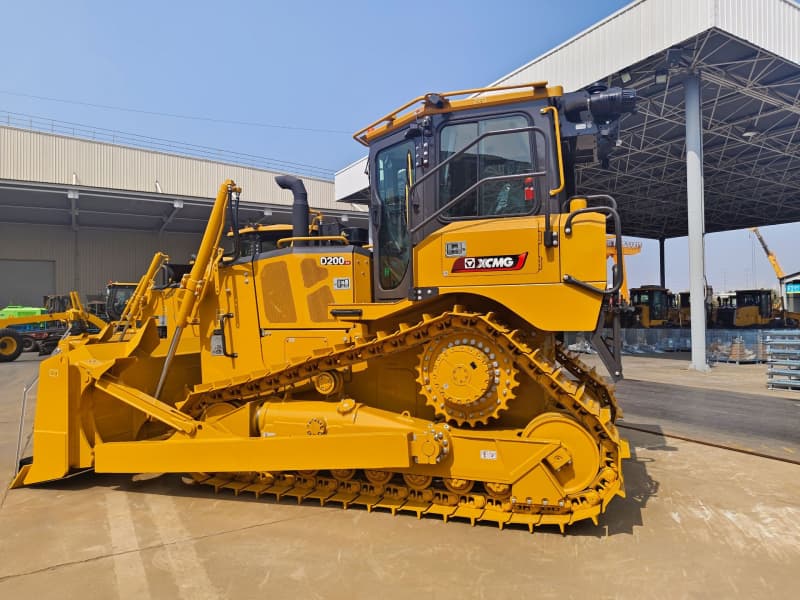

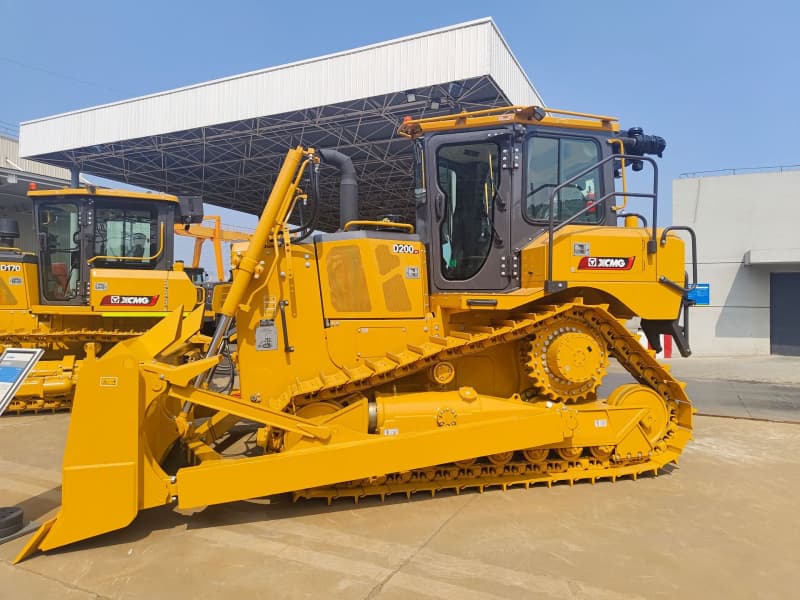

Brand New XCMG D200 Bulldozer

Operating Weight: 20,500 kg

Engine Power:162 kW (217hp)

Overall Dimensions:6,135×3,335×3,495 mm

Discover the new XCMG D200 hydrostatic dozer with 162 kW power, low ground pressure, and precise control for demanding construction projects.
Get a Quote
Brand New XCMG D200 Bulldozer

Product Overview


The Brand New XCMG D200 is a mid-sized 20.5-ton hydrostatic transmission crawler bulldozer designed for efficient excavation, backfilling, leveling, and heavy material transport across highway construction, rail projects, municipal sites, and water conservancy engineering. Powered by a 162 kW 9DF engine (EU Stage III) operating at 1,800 rpm, the D200H combines an elevated drive design with full hydrostatic drive technology and an extended chassis layout. Delivering a low ground pressure of 53 kPa, hydraulic pilot shovel control, and intelligent construction data management, it offers exceptional maneuverability, stability, and fuel efficiency.


XCMG D200H Bulldozer


Key Product Features


  • Full Hydrostatic Transmission: Advanced dual-path hydrostatic drive provides stepless speed adjustments, power turns under load, and precise speed control to maximize pushing efficiency.

  • Elevated Drive Structure & Extended Chassis: Elevated sprocket design protects final drives from ground impacts and shock loads, while the extended chassis and low 53 kPa ground pressure ensure superior traction and flotation on soft soils.

  • High-Torque Powertrain: Driven by a robust 162 kW 9DF engine paired with direct planetary reduction mechanisms for strong pushing force and deep torque output.

  • L-Type Push Arm & Pilot Hydraulic Control: Features high-rigidity L-type push arms paired with hydraulic pilot controls for effortless, highly responsive blade positioning and fine grading.

  • Operator Comfort & Serviceability: Outfitted with a tilting/reversible cab for rapid maintenance access, integrated intelligent control systems, and automated construction data tracking.


Technical Specifications


ParameterStandard Specification
Operating Weight / Working Device20,500 kg
Maximum Operating Weight20,500 kg
Rated Power / Speed162 kW @ 1,800 rpm
Engine Model9DF
Emission StandardEU Stage III
Overall Dimensions (L × W × H)6,135 × 3,335 × 3,495 mm
Transmission TypeDual-Path Hydrostatic Transmission
Ground Pressure53 kPa
Minimum Turning Radius4,133 mm
Undercarriage TypeElevated Drive with Extended Chassis


EC9DD94E01BB6193BC635B9FF97E3DB2

FAQ

A:

All brand-new bulldozers come with a standard manufacturer's warranty, typically covering 12 months or 2,000 operating hours, whichever comes first. Extended warranty coverage for core components—such as the engine, main hydraulic pump, transmission, and final drive—is available upon agreement.

A:

Bulldozers are heavy-duty machines; depending on their size and weight, we employ the following safe and cost-effective shipping solutions:

Flat Rack Container: Suitable for small to medium-sized bulldozers; they can be loaded as complete units or with the blade removed.

Ro-Ro (Roll-on/Roll-off) Ship: Equipment is driven directly onto and off the vessel. Transport takes place entirely within the cargo hold, offering protection against moisture and rust, as well as the highest level of safety.

Breakbulk Ship: Suitable for bulk shipments of bulldozers or for ultra-heavy mining bulldozers (e.g., those exceeding 320 horsepower).

Containerized Transport (40HQ): Certain small to medium-sized models can be loaded into 40-foot High Cube containers after the removal of the cab, track frames, and blade, significantly reducing shipping costs.

A:

Depending on operational requirements, the following attachments can be installed on the rear of a bulldozer:

Single-Shank Ripper: Suitable for breaking up hard rock, frozen ground, or damaged pavement.

Multi-Shank Ripper: Suitable for excavating soil and shale of moderate hardness.

Winch: Suitable for forestry operations, field recovery, and towing heavy loads.

Drawbar: Used for towing other unpowered construction equipment or trailers.

A:

We can configure the optimal machine based on your specific working environment:

Machine Versions: Available in Standard (general earthmoving), Wetland/LGP (swampy and soft terrain), Desert (high-temperature and dust-resistant), and Sanitation (landfill) versions.

Blade Types: Options include the Straight-Tilt Blade (high digging force; suitable for hard soil and rock), Angle Blade (adjustable angle; suitable for road construction and trench backfilling), or Semi-U Blade (high capacity; suitable for high-volume dozing).

A:

Yes, we guarantee that all bulldozers we supply are 100% brand-new, original equipment. They undergo rigorous factory quality inspections prior to shipment and come with the original manufacturer's certificate of conformity, factory inspection report, and technical documentation.

A:

We supply brand-new bulldozers from globally renowned brands such as SHANTUI, SDLG, XCMG, SANY, and LIUGONG.
Our product lineup covers a full range of crawler bulldozers—from 80 hp to 900 hp and above—including light-duty municipal models, medium-duty general-purpose models (such as the popular 160 hp, 220 hp, and 320 hp units), and heavy-duty mining-grade models.
