XCMG

Explore durable bulldozer options for construction and earthmoving projects. Built for power, stability, and efficient site performance.

Brand New XCMG D170 Bulldozer

Operating Weight: 17,400 kg

Engine Power:131 kW (175 hp)

Overall Dimensions: 5,580×3,455×3,300 mm


Discover the XCMG D170 mining dozer with 131 kW power, 4.5 m³ blade, and precise hydraulic control for mining and heavy earthmoving.
Get a Quote
Brand New XCMG D170 Bulldozer

Product Overview


The XCMG D170  is an advanced 17.4-ton crawler bulldozer featuring hydraulic transmission and an electronic shift control system, specifically developed for overseas mining and heavy civil engineering markets. Driven by a 131 kW engine and equipped with a 4.5 m³ capacity blade, the D170 delivers outstanding pushing efficiency and reliable performance. Built with intelligent control technology, limit load management, and hydraulic pilot control, this dozer excels in mining, earthwork pushing, backfilling, and large-scale ground leveling operations.

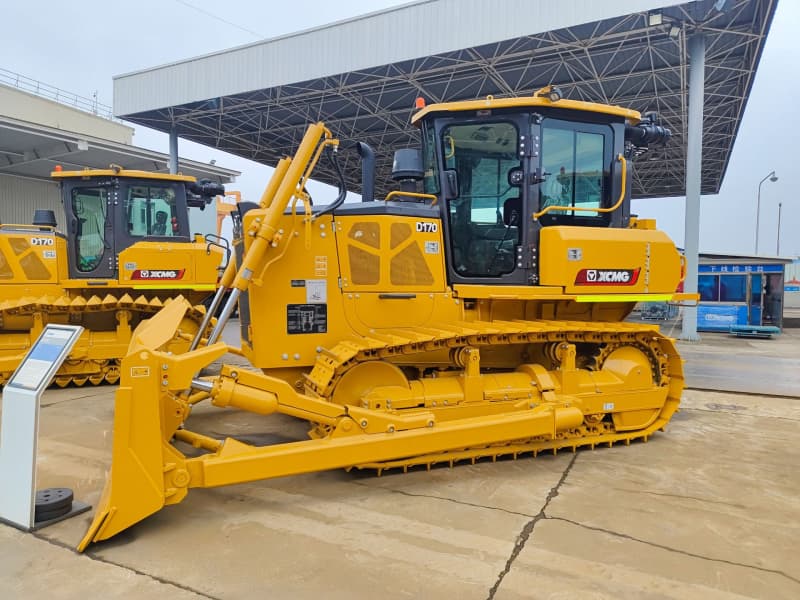

XCMG D170 bulldozer

Key Product Features


  • Electro-Hydraulic Transmission System: Features electronic shift control and hydraulic pilot blade operation for precise control, reduced operator effort, and smooth power delivery.

  • Intelligent Load Management: Incorporates intelligent control systems and limit load technology to automatically balance engine output with hydraulic load, maximizing fuel efficiency and productivity.

  • Heavy-Duty Blade Construction: Outfitted with a 3,450 mm wide by 1,149 mm high blade capable of a 540 mm digging depth and 475 mm working depth for high-volume earthmoving.

  • Multi-Project Applicability: Ideal for open-cast mining support, road and railway earthworks, airport construction, water conservancy projects, and municipal infrastructure.


Technical Specifications


ParameterStandard Specification
Operating Weight17,400 kg
Rated Power131 kW @ 1,850 rpm
Blade Capacity4.5 m³
Ground Pressure56.4 kPa
Min. Turning Radius4,200 / 4,600 mm
Crawler (Track) Width510 mm
Blade Width × Height3,455 × 1,149 mm
Max. Blade Digging Depth540 mm
Max. Working Depth475 mm
Overall Dimensions (L × W × H)5,580 × 3,455 × 3,300 mm


EC9DD94E01BB6193BC635B9FF97E3DB2

FAQ

A:

All brand-new bulldozers come with a standard manufacturer's warranty, typically covering 12 months or 2,000 operating hours, whichever comes first. Extended warranty coverage for core components—such as the engine, main hydraulic pump, transmission, and final drive—is available upon agreement.

A:

Bulldozers are heavy-duty machines; depending on their size and weight, we employ the following safe and cost-effective shipping solutions:

Flat Rack Container: Suitable for small to medium-sized bulldozers; they can be loaded as complete units or with the blade removed.

Ro-Ro (Roll-on/Roll-off) Ship: Equipment is driven directly onto and off the vessel. Transport takes place entirely within the cargo hold, offering protection against moisture and rust, as well as the highest level of safety.

Breakbulk Ship: Suitable for bulk shipments of bulldozers or for ultra-heavy mining bulldozers (e.g., those exceeding 320 horsepower).

Containerized Transport (40HQ): Certain small to medium-sized models can be loaded into 40-foot High Cube containers after the removal of the cab, track frames, and blade, significantly reducing shipping costs.

A:

Depending on operational requirements, the following attachments can be installed on the rear of a bulldozer:

Single-Shank Ripper: Suitable for breaking up hard rock, frozen ground, or damaged pavement.

Multi-Shank Ripper: Suitable for excavating soil and shale of moderate hardness.

Winch: Suitable for forestry operations, field recovery, and towing heavy loads.

Drawbar: Used for towing other unpowered construction equipment or trailers.

A:

We can configure the optimal machine based on your specific working environment:

Machine Versions: Available in Standard (general earthmoving), Wetland/LGP (swampy and soft terrain), Desert (high-temperature and dust-resistant), and Sanitation (landfill) versions.

Blade Types: Options include the Straight-Tilt Blade (high digging force; suitable for hard soil and rock), Angle Blade (adjustable angle; suitable for road construction and trench backfilling), or Semi-U Blade (high capacity; suitable for high-volume dozing).

A:

Yes, we guarantee that all bulldozers we supply are 100% brand-new, original equipment. They undergo rigorous factory quality inspections prior to shipment and come with the original manufacturer's certificate of conformity, factory inspection report, and technical documentation.

A:

We supply brand-new bulldozers from globally renowned brands such as SHANTUI, SDLG, XCMG, SANY, and LIUGONG.
Our product lineup covers a full range of crawler bulldozers—from 80 hp to 900 hp and above—including light-duty municipal models, medium-duty general-purpose models (such as the popular 160 hp, 220 hp, and 320 hp units), and heavy-duty mining-grade models.
