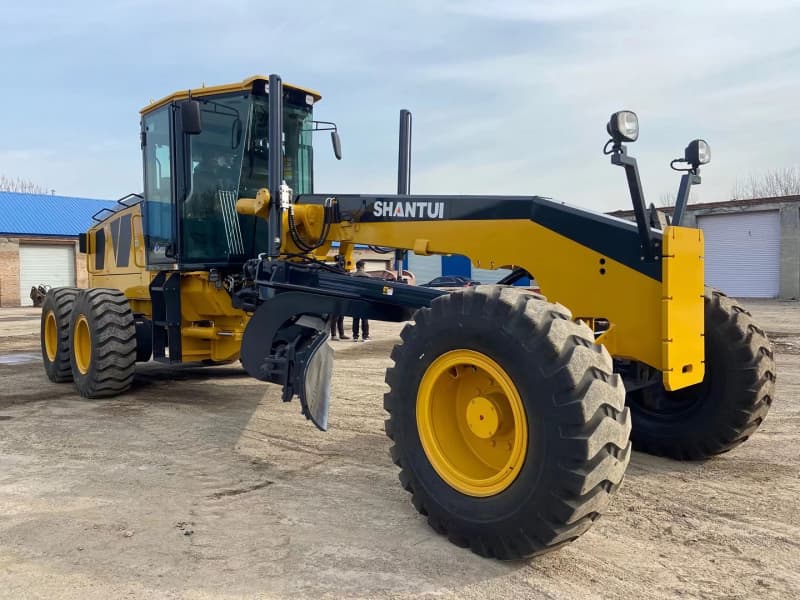

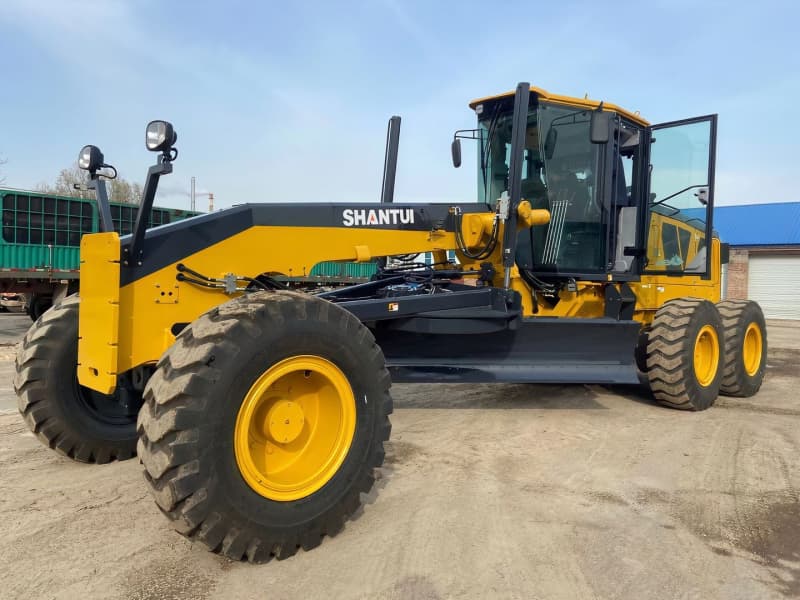

Brand New Shantui SG19 Motor Grader
Operating Weight: 16,000 kg
Engine Power:140 kW(187 hp)
Blade Capacity : 3,660 × 610 mm
Product Categories
leave a message
Product Overview
The Brand New Shantui SG19 is a high-performance 16-ton motor grader built for heavy subgrade leveling, fine grading of road bases, farmland water conservancy, and municipal infrastructure projects. Powered by a high-torque Weichai WP6G190E22 engine producing 140 kW matched with a Shantui electro-hydraulic gearbox, the SG19-B6 delivers a maximum traction force of 87.8 kN. Equipped with a heavy-duty slewing bearing working device and an integrally hot-pressed double-rail grader blade , this machine ensures precision blade control, high operational durability, and low fuel consumption.
Key Product Features
Optimized Weichai Powertrain: High-torque 140 kW Weichai engine paired with Shantui's electro-hydraulic transmission for smooth shifting, excellent fuel economy, and 87.8 kN maximum drawbar traction.
Heavy-Duty Wear-Resistant Working Device: Incorporates a heavy-duty slewing ring with an integrally hot-pressed double-rail moldboard engineered for superior wear resistance and high impact strength.
A-Pillarless Panoramic Cab: Cab layout designed without front A-pillars for unobstructed line-of-sight to the blade edges, equipped with an adjustable multi-degree-of-freedom instrument panel and push-button gear shifting.
Maintenance-Friendly Design: Features a wide-opening engine hood, lubrication-free joint tech, centralized pressure ports, and externally routed oil fillers/drains for fast ground-level maintenance.
Technical Specifications
FAQ
All new motor graders come with a standard manufacturer’s warranty, typically valid for 12 months or 2,000 operating hours (whichever comes first). Extended warranty coverage for core components such as the engine, transmission, and drive axle may be available depending on the agreement.
Motor graders have relatively long bodies. Based on model dimensions and cost considerations, we offer the following shipping options:
Roll-on/Roll-off (Ro-Ro) Ship: The entire machine is driven onto and off the ship, ensuring damage-free transport and the highest level of safety.
Flat Rack Container: Loaded after dismantling the blade and some auxiliary components; suitable for regular liner services.
Breakbulk Ship: Suitable for bulk shipments of motor graders or ultra-heavy mining-grade models.
Container Disassembly Shipping (40HQ): Some small and medium-sized motor graders can be loaded into high-cube containers after removing the cab, front axle, and blade, significantly reducing ocean freight costs.
We can configure the optimal model based on your specific operating conditions:
Model and Drive Configuration: We offer rear-wheel drive (4x6 / 6x4) (cost-effective, suitable for general subgrade grading) and all-wheel drive (AWD / 6x6) (high traction, suitable for wet, slippery, muddy, and snowy conditions).
Work Equipment Options:
Moldboard: Available in 12-foot (3.66-meter) or 14-foot (4.27-meter) high-strength, wear-resistant models.
Front Dozer Blade: Suitable for light dozing and trenching operations at the front of the motor grader.
Mid/Rear Ripper/Scarifier: Used to break up hard surfaces, frozen ground, or hard rock layers.
We specialize in supplying brand-new motor graders from well-known brands such as XCMG (Xugong), SANY (Sany), SDLG (Lingong), SEM (Shangong Machinery), SHANTUI (Shantui), and LIUGONG (Liugong).
