Brand New Shantui SE135 Excavator

Operating Weight: 13,500 kg

Engine Power: 86 kW (115 hp)

Bucket Capacity: 0.6 m³


Explore the Shantui SE135 small hydraulic excavator with 86 kW power, 0.6 m³ bucket, strong digging force, and efficient performance.
Get a Quote
Brand New Shantui SE135 Excavator

Product Overview


The Brand New Shantui SE135 is a high-performance 13.5-ton small hydraulic excavator engineered for urban utility, road maintenance, farmland construction, and light earthmoving operations. Powered by an internationally renowned turbocharged engine outputting 86 kW @ 2,200 rpm , the SE135 pairs an intelligent control system with a top-tier hydraulic setup for high efficiency and low fuel consumption. Outfitted with a standard 0.6 m³ bucket—one of the largest in its class—and high-diameter hydraulic cylinders, this machine delivers excellent digging breakout force, operational stability, and versatile performance across multiple attachment modes.

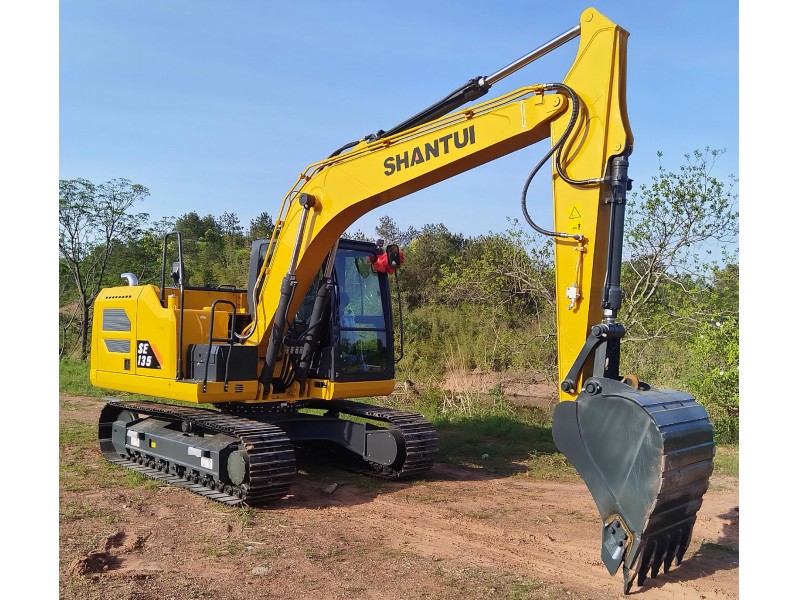

SE135 Excavator


Key Product Features


  • High-Efficiency Powertrain & Hydraulics: Turbocharged 86 kW engine paired with a globally renowned hydraulic system and intelligent power-matching control to reduce fuel burn while maximizing output.

  • Superior Digging Force & Stability: Equipped with large-diameter hydraulic cylinders delivering a 97 kN bucket breakout force and 70 kN arm digging force, backed by a stable 13.5-ton chassis.

  • Simplified Centralized Servicing: Backward-opening dual gas-strut engine hood with centrally grouped fuel, oil, and pilot filter elements, plus an electric fuel transfer pump for effortless refueling.

  • Multi-Mode Application Versatility: Built-in preset work modes adapt the hydraulic flow for excavation, leveling, hydraulic crushing, and lifting tasks.


Technical Specifications


ParameterStandard Specification
Operating Weight13,500 kg
Engine Power / Speed86 kW @ 2,200 rpm
Bucket Capacity0.6 m³
Emission StandardEU Stage IIIA
Bucket Digging Force97 kN
Arm / Bucket Rod Digging Force70 kN
Max. Digging Height8,495 mm
Max. Digging Distance / Reach8,300 mm
Max. Digging Depth5,490 mm
Rotating / Swing Speed11.3 rpm
Travel Speed (Low / High)3.25 / 5.2 km/h
External Dimensions (L × W × H)7,860 × 2,500 × 2,855 mm
EC9DD94E01BB6193BC635B9FF97E3DB2

FAQ

A:

Depending on the machinery's dimensions, tonnage, and the shipping route to the destination port, we typically select the most cost-effective and secure transport solution:
Container Shipping (Standard/High Cube): Suitable for small excavators and medium-sized excavators with partially disassembled booms.
Flat Rack Container: Suitable for medium-sized excavators that exceed standard height or width limits.
Ro-Ro (Roll-on/Roll-off) Ship: Equipment is driven directly on and off without disassembly, offering the highest level of safety.
Breakbulk Ship: Suitable for large mining excavators or bulk shipments.

A:

All brand-new excavators come with a standard manufacturer's warranty, typically covering 12 months or 2,000 operating hours (whichever comes first). Extended warranty periods may be available upon agreement for certain brands or specific model series.

A:

Yes. In addition to the standard bucket, we can configure various high-quality OEM or compatible attachments based on your operational needs, including:
Hydraulic Breaker
Hydraulic Quick Coupler
Grapple (for timber or stone)
Auger
Vibratory Compactor / Ripper

A:

You can provide our professional team with details regarding your specific application (such as land clearing, municipal works, mining, or road construction) and your budget requirements. Based on factors like operating depth, bucket capacity, and engine emission standards (Tier 2 / Tier 3 / Tier 4 / Stage V), we will recommend the most cost-effective and high-value brands and models for your needs.

A:

Yes, we guarantee that all construction machinery supplied is brand-new, original equipment (100% brand new), accompanied by complete original factory inspection certificates, technical specifications, and the manufacturer's quality warranty.

A:

We specialize in supplying brand-new construction machinery from a wide range of globally renowned brands, including XCMG, SANY, SDLG, CAT, SHANTUI, DEVELON (formerly Doosan), ZOOMLION, and LIUGONG.
We offer all currently manufactured models, ranging from mini excavators (1–6 tons) and medium-sized excavators (13–30 tons) to heavy-duty mining excavators (over 35 tons).
