Brand New Shantui SD22 Bulldozer

Operating Weight: 23,450 kg

Engine Power:175 kW (234 hp)

Overall Dimensions: 6,060×4,200×3,402 mm


Explore the brand new Shantui SD22 medium crawler bulldozer with 175 kW power, 4.6 m³ blade, and durable performance for tough job sites.
Get a Quote
Brand New Shantui SD22 Bulldozer

Product Overview

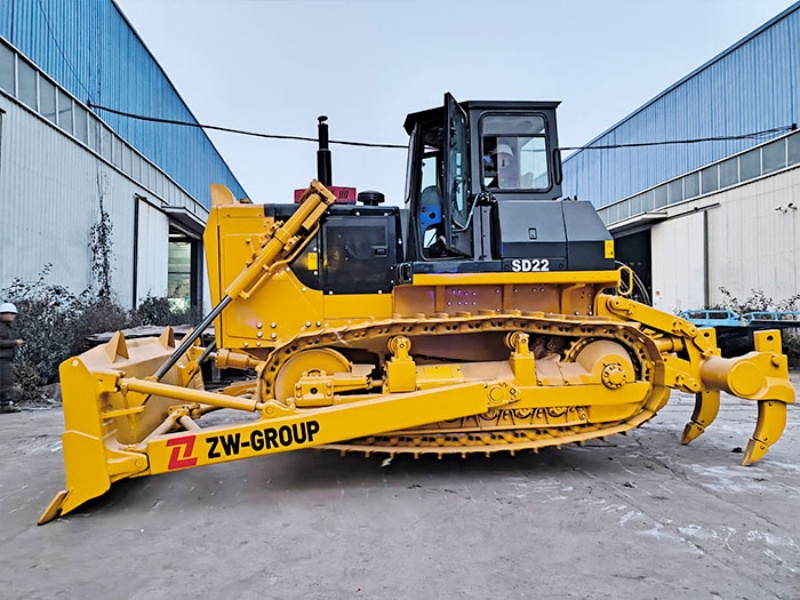

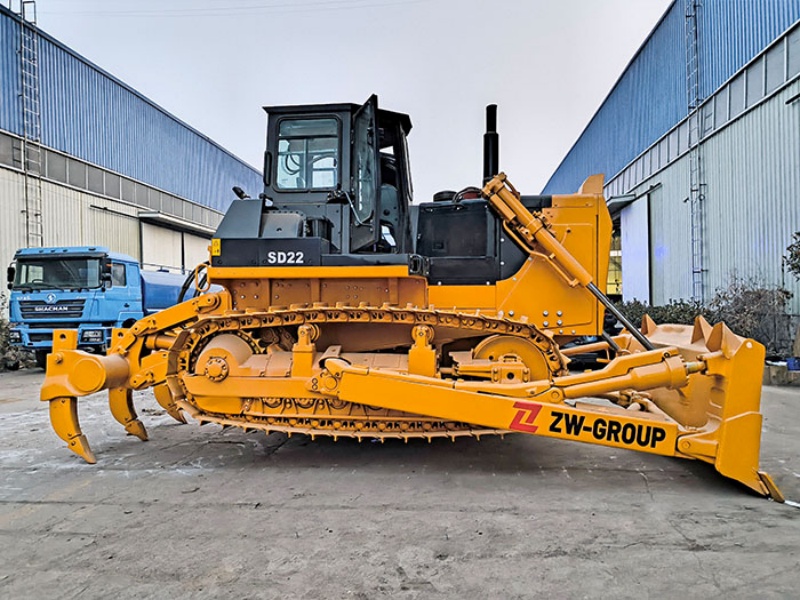

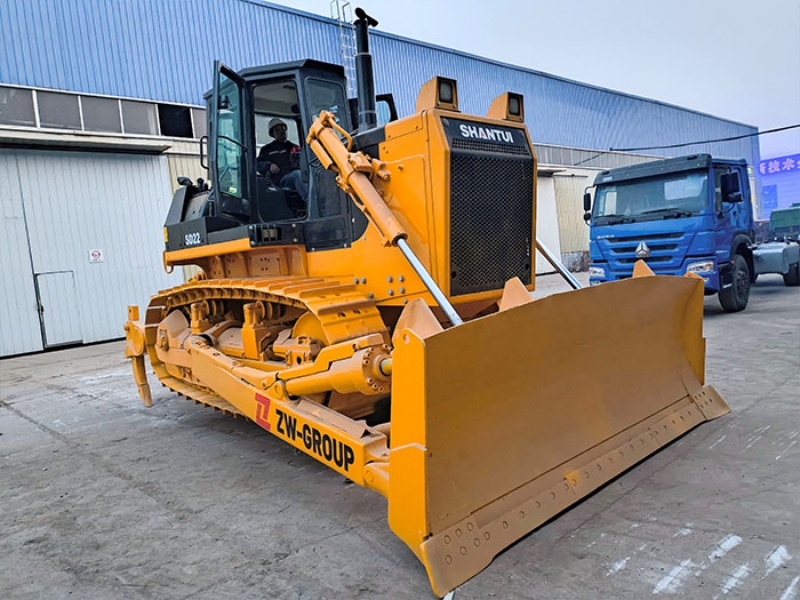

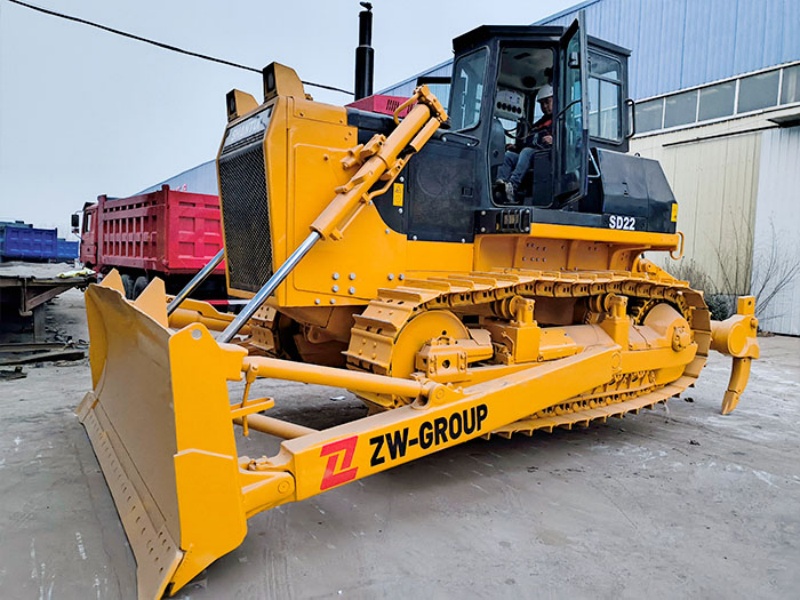

The Brand New Shantui SD22 is a heavy-duty 23.4-ton medium crawler bulldozer designed for earthmoving, land clearing, mining, and large-scale infrastructure construction. Powered by a high-torque Cummins NT855-C280S10 or Weichai WP12G240E306 engine delivering 175 kW @ 1,800 rpm , the SD22 combines massive drawbar pull with long-term structural durability. Equipped with Shantui's market-proven chassis and powertrain, a standard 4.6 m³ straight-tilting blade, and optional multi-shank rippers, this machine easily handles tough working conditions including heavy clay, frozen soil, and rocky terrain.


SD22 Bulldozer


Key Product Features


  • Proven Powertrain & High Traction: Dedicated high-torque engine matched with Shantui's self-developed, market-proven drive transmission and undercarriage for high drawbar pull and durability.

  • Versatile Dozing Attachments: Features a high-penetration straight-tilting blade (4.6 m³ capacity) with optional Angle, U-shaped, Semi-U blades, and 3-shank ripper for tough ground conditions.

  • Ergonomic Hexahedral Cab: Spacious 6-sided cab design with ergonomic controls, low noise, and wide all-around visibility for safe, continuous operation.

  • Convenient Serviceability Access: Wide-opening side engine doors with grouped filter and hydraulic maintenance points for quick daily inspections and routine servicing.


Technical Specifications


ParameterStandard Specification
Operating Weight23,450 kg
Rated Power / Speed175 kW @ 1,800 rpm
Overall Dimensions (L × W × H)6,060 × 4,200 × 3,402 mm
Engine Brand & ModelCummins NT855-C280S10 / Weichai WP12G240E306
Emission StandardEU Stage II
Blade Capacity4.6 m³
Available Blade TypesStraight Tilting, Angle, U-Shaped, Semi-U
Ground Contact Length2,430 mm
Track Center Distance2,000 mm
Track Shoe Width Options560 / 610 / 660 mm
Fuel Tank Capacity450 L


EC9DD94E01BB6193BC635B9FF97E3DB2

FAQ

A:

All brand-new bulldozers come with a standard manufacturer's warranty, typically covering 12 months or 2,000 operating hours, whichever comes first. Extended warranty coverage for core components—such as the engine, main hydraulic pump, transmission, and final drive—is available upon agreement.

A:

Bulldozers are heavy-duty machines; depending on their size and weight, we employ the following safe and cost-effective shipping solutions:

Flat Rack Container: Suitable for small to medium-sized bulldozers; they can be loaded as complete units or with the blade removed.

Ro-Ro (Roll-on/Roll-off) Ship: Equipment is driven directly onto and off the vessel. Transport takes place entirely within the cargo hold, offering protection against moisture and rust, as well as the highest level of safety.

Breakbulk Ship: Suitable for bulk shipments of bulldozers or for ultra-heavy mining bulldozers (e.g., those exceeding 320 horsepower).

Containerized Transport (40HQ): Certain small to medium-sized models can be loaded into 40-foot High Cube containers after the removal of the cab, track frames, and blade, significantly reducing shipping costs.

A:

Depending on operational requirements, the following attachments can be installed on the rear of a bulldozer:

Single-Shank Ripper: Suitable for breaking up hard rock, frozen ground, or damaged pavement.

Multi-Shank Ripper: Suitable for excavating soil and shale of moderate hardness.

Winch: Suitable for forestry operations, field recovery, and towing heavy loads.

Drawbar: Used for towing other unpowered construction equipment or trailers.

A:

We can configure the optimal machine based on your specific working environment:

Machine Versions: Available in Standard (general earthmoving), Wetland/LGP (swampy and soft terrain), Desert (high-temperature and dust-resistant), and Sanitation (landfill) versions.

Blade Types: Options include the Straight-Tilt Blade (high digging force; suitable for hard soil and rock), Angle Blade (adjustable angle; suitable for road construction and trench backfilling), or Semi-U Blade (high capacity; suitable for high-volume dozing).

A:

Yes, we guarantee that all bulldozers we supply are 100% brand-new, original equipment. They undergo rigorous factory quality inspections prior to shipment and come with the original manufacturer's certificate of conformity, factory inspection report, and technical documentation.

A:

We supply brand-new bulldozers from globally renowned brands such as SHANTUI, SDLG, XCMG, SANY, and LIUGONG.
Our product lineup covers a full range of crawler bulldozers—from 80 hp to 900 hp and above—including light-duty municipal models, medium-duty general-purpose models (such as the popular 160 hp, 220 hp, and 320 hp units), and heavy-duty mining-grade models.
