SHANTUI

Explore durable loader options for construction equipment needs. Built for heavy-duty performance, efficiency, and reliable material handling.

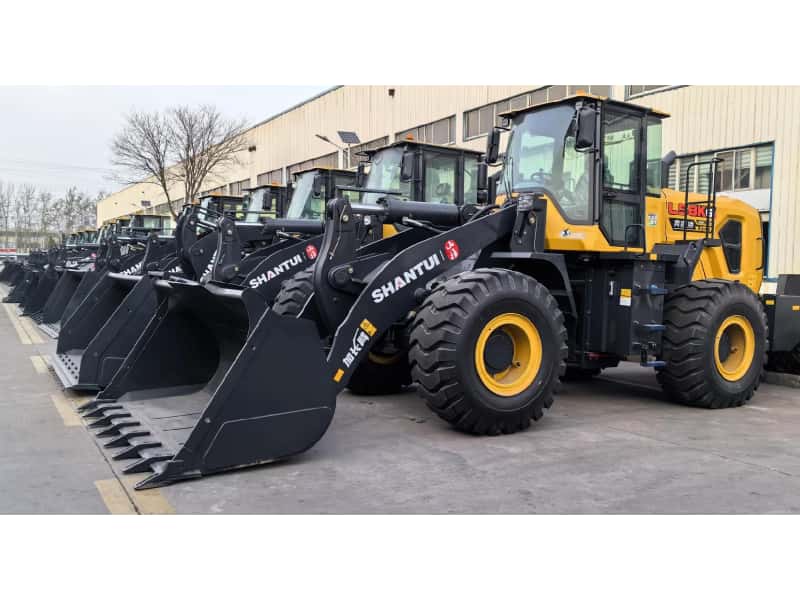

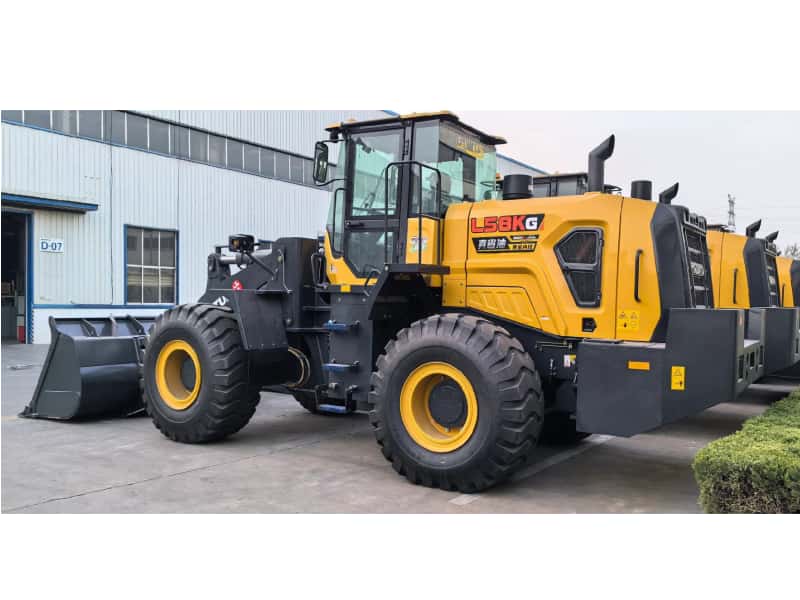

Brand New Shantui L58KG Wheel Loader

Operating Weight: 18,250 kg

Engine Power: 162 kW (217 hp)

Bucket Capacity: 3.0 m³


Explore the Shantui L58KG medium wheel loader with 5.5-ton capacity, 162 kW power, 3.0 m³ bucket, and fast 10.2 s cycle time.
Get a Quote
Brand New Shantui L58KG Wheel Loader

Product Overview


The Brand New Shantui L58KG is a high-performance 5.5-ton medium wheel loader developed on Shantui's latest R&D platform. Engineered for heavy-duty earthmoving, aggregate handling, mining, and coal yard operations, it is powered by a Weichai-customized WD10 engine delivering 162 kW. Matched with Shantui's self-developed planetary transmission, a standard 3.0 m³ bucket, a 3,300 mm long wheelbase, and double taper roller bearings at the body articulation, the L58K-C5 delivers balanced load distribution, rapid 10.2-second cycle times, and exceptional structural endurance.

L58K-C5 Wheel Loader

Key Product Features


  • Golden Core Powertrain: Customized Weichai WD10 engine paired with a self-developed Shantui planetary transmission for maximum power transfer, fast cycle response, and high fuel economy.

  • Long-Wheelbase Articulated Chassis: Heavy-duty 3,300 mm long wheelbase with center articulation and double taper roller bearings for superior stability and high load-bearing capacity.

  • Ergonomic Integrated Cab: Features 15% more interior room, enhanced sealing, low interior noise, and a modern ergonomic layout for operator comfort.

  • Easy Maintenance Design: Same-side placement of air and fuel filters, an integrated relay box, and externally mounted drive axle brake calipers simplify daily checks and servicing.


Technical Specifications


ParameterStandard Specification
Bucket Capacity3.0 m³
Operating Weight18,250 kg
Rated Power162 kW
Rated Loading Capacity5,500 kg
Engine ModelWeichai WD10
Emission StandardEU Stage IIIA
Wheelbase3,300 mm
Max. Dumping Height3,050 mm
Dumping Reach / Distance1,185 mm
Hydraulic Cycle Time (Subtotal)10.2 s
Max. Travel Speed39 km/h
External Dimensions (L × W × H)8,300 × 3,066 × 3,450 mm
EC9DD94E01BB6193BC635B9FF97E3DB2

FAQ

A:

All brand-new wheel loaders come with a standard manufacturer's warranty, typically covering 12 months or 2,000 operating hours (whichever comes first). Specific core components (such as the engine, transmission, and drive axles) are eligible for manufacturer-backed joint warranty or extended warranty coverage.

A:

Depending on the loader's overall dimensions and the requirements of the destination port, we offer the following shipping options:
Container Shipping (40HQ Container): Loaders weighing 3 tons or less (or those with the cab/tires removed) can fit into high-cube containers, saving on shipping costs.
Flat Rack Container: Suitable for medium-to-heavy loaders; requires no extensive disassembly.
Ro-Ro Ship (Roll-on/Roll-off): The loader is driven directly onto and off the vessel; ensures damage-free transport and offers the highest level of safety.
Breakbulk Ship: Suitable for bulk orders or large-sized loaders.

A:

We can recommend the optimal configuration based on your specific working environment (such as sand and gravel yards, mines, earthworks, ports and terminals, or agriculture, forestry, and livestock operations):
Standard Bucket: Suitable for general earthmoving and the loading/unloading of sand and gravel.
Rock Bucket: Features thickened lip and side plates and high-strength teeth; specifically designed for mining and highly abrasive operating conditions.
Light Material Bucket / High-Capacity Bucket: Suitable for handling low-density bulk materials such as coal, wood chips, and grain.
High Dump Bucket: Increases the dumping height; suitable for loading high-sided trucks or hoppers.

A:

Yes, all the construction machinery we sell is 100% brand-new and genuine. Each unit comes with an original manufacturer's certificate of conformity, a quality warranty, and complete technical documentation, and undergoes rigorous inspection and testing prior to shipment.

A:

We supply brand-new wheel loaders from globally renowned brands such as XCMG, SDLG, SANY, LIUGONG, CAT, SHANTUI, ZOOMLION, and DEVELON (formerly Doosan).
Our range covers models with rated capacities from 1.5 tons to 12 tons and above, with a focus on the market's most popular 3-ton, 5-ton, 6-ton, and 7-ton standard and heavy-duty models.
