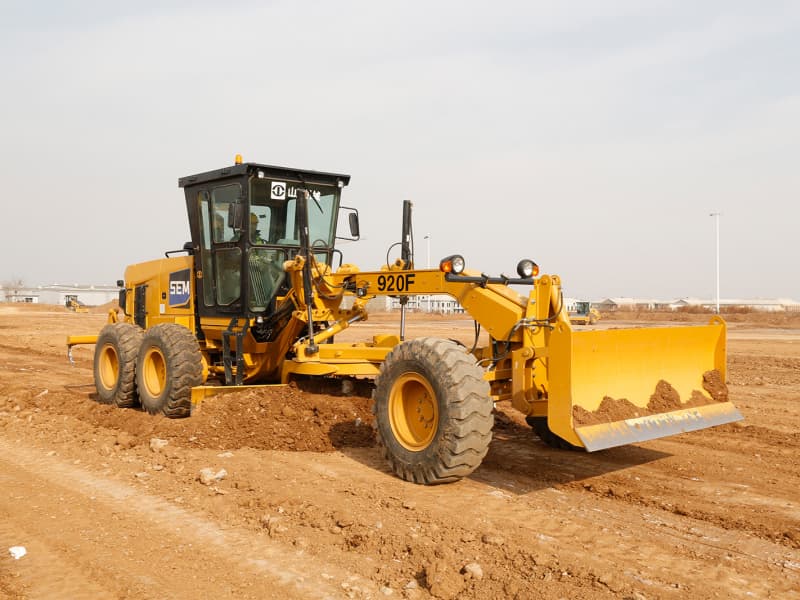

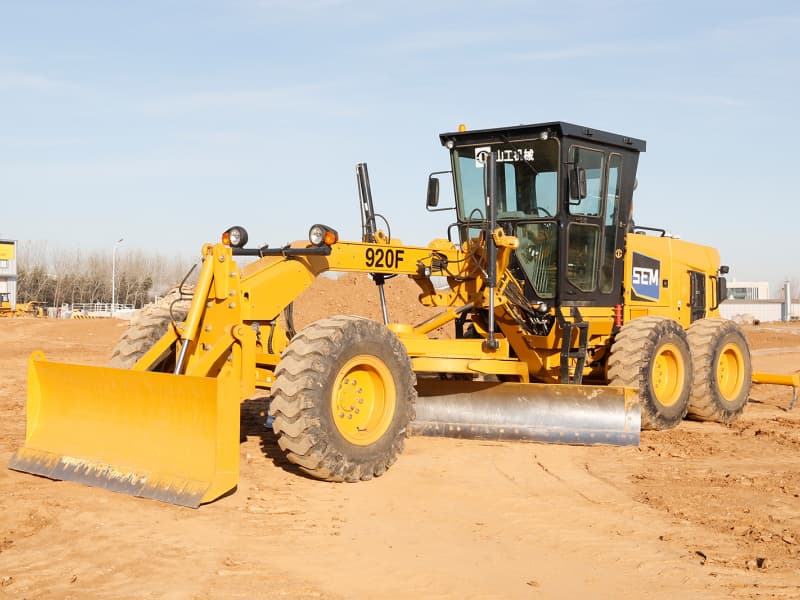

Brand New SEM 920F Motor Grader
Operating Weight: 15,476 kg
Engine Power:147 kW (197 hp)
Blade Capacity : 3,669 × 610 mm
Product Categories
leave a message
Product Overview
The Brand New SEM 920F is a high-performance motor grader that inherits Caterpillar's advanced design and quality standards, complying with China's National IV non-road emission regulations. Powered by a reliable Shangchai SC7H200G4 engine delivering 147 kW (197 hp) and featuring a load-sensing hydraulic system with PPPC (Proportional Priority Pressure Compensated) control valves, the 920F offers exceptional traction force , precise control, and high structural durability for highway construction, site preparation, and municipal leveling.
Key Product Features
Efficient & Eco-Friendly Power: Equipped with a Shangchai SC7H200G4 National IV engine featuring a new ECO mode and optimized axle load distribution for superior traction and fuel efficiency.
Caterpillar-Tech Hydraulics: Variable displacement piston pump combined with PPPC control valves provides on-demand power distribution, smooth multi-function operation, and standard blade float.
Superior Visibility & Comfort: Front-frame mounted cab provides exceptional line-of-sight to the moldboard and circle; features ergonomic controls, mechanical suspension seat, and high-output AC.
Rugged Box-Section Frame: Flanged box-section main frame, A-shaped drawbar made of dual square steels, and Caterpillar-designed rear axle with 4-planet gear final drive ensure extreme durability.
Technical Specifications
FAQ
All new motor graders come with a standard manufacturer’s warranty, typically valid for 12 months or 2,000 operating hours (whichever comes first). Extended warranty coverage for core components such as the engine, transmission, and drive axle may be available depending on the agreement.
Motor graders have relatively long bodies. Based on model dimensions and cost considerations, we offer the following shipping options:
Roll-on/Roll-off (Ro-Ro) Ship: The entire machine is driven onto and off the ship, ensuring damage-free transport and the highest level of safety.
Flat Rack Container: Loaded after dismantling the blade and some auxiliary components; suitable for regular liner services.
Breakbulk Ship: Suitable for bulk shipments of motor graders or ultra-heavy mining-grade models.
Container Disassembly Shipping (40HQ): Some small and medium-sized motor graders can be loaded into high-cube containers after removing the cab, front axle, and blade, significantly reducing ocean freight costs.
We can configure the optimal model based on your specific operating conditions:
Model and Drive Configuration: We offer rear-wheel drive (4x6 / 6x4) (cost-effective, suitable for general subgrade grading) and all-wheel drive (AWD / 6x6) (high traction, suitable for wet, slippery, muddy, and snowy conditions).
Work Equipment Options:
Moldboard: Available in 12-foot (3.66-meter) or 14-foot (4.27-meter) high-strength, wear-resistant models.
Front Dozer Blade: Suitable for light dozing and trenching operations at the front of the motor grader.

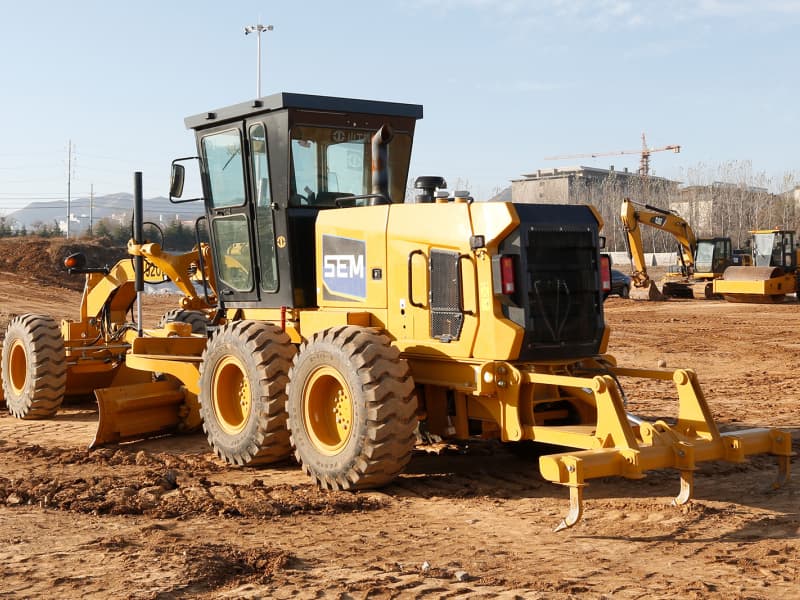

Mid/Rear Ripper/Scarifier: Used to break up hard surfaces, frozen ground, or hard rock layers.
We specialize in supplying brand-new motor graders from well-known brands such as XCMG (Xugong), SANY (Sany), SDLG (Lingong), SEM (Shangong Machinery), SHANTUI (Shantui), and LIUGONG (Liugong).
