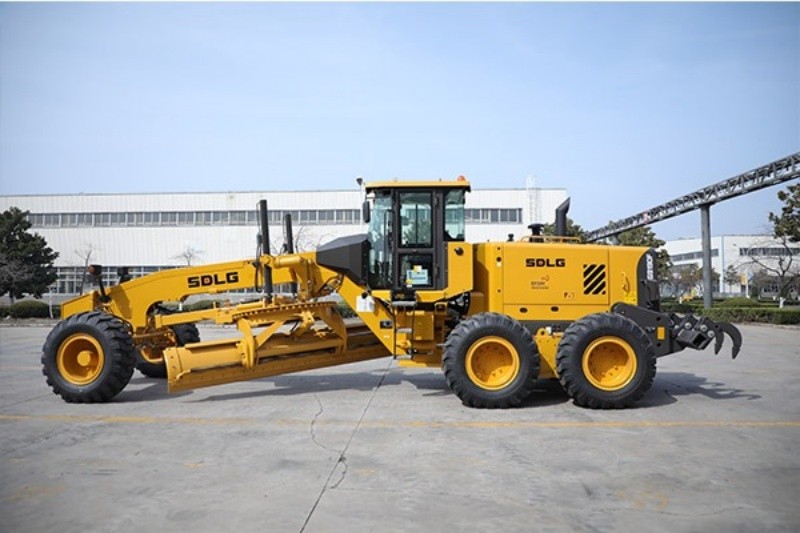

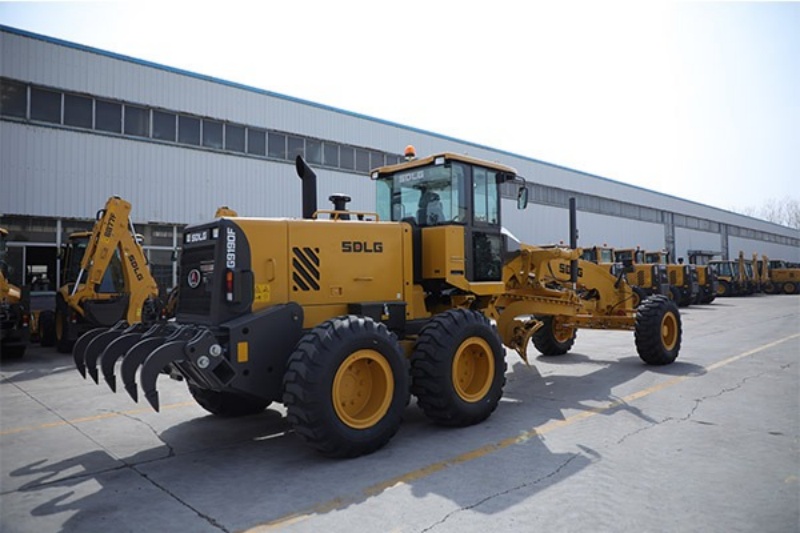

Brand New SDLG G9190F Motor Grader
Operating Weight: 15,800 kg
Engine Power:146 kW(195 hp)
Blade Capacity : 3,962 × 610 mm
Product Categories
leave a message
Product Overview
The Brand New SDLG G9190F is a high-speed, high-precision 15.8-ton motor grader engineered using advanced European technology for heavy infrastructure, mine haul road maintenance, airport construction, and agricultural land leveling. Powered by a high-torque Deutz BF6M1013EC engine delivering 146 kW (China Phase III compliant), the G9190F delivers an 82 kN maximum tractive force. Featuring a heavy-duty 3,962 mm moldboard capable of a deep 787 mm cut and an articulated frame steering design, this multi-purpose grader excels at ground leveling, ditching, slope scraping, bulldozing, material spreading, and snow removal.
Key Product Features
European Technology Powertrain: Deutz BF6M1013EC engine producing 146 kW and 82 kN tractive force for smooth, fuel-efficient operation across heavy earthworks and hard soils.
Deep-Cutting Precision Moldboard: Equipped with a 3,962 * 610 * 25 mm heavy-duty alloy steel blade featuring a 787 mm maximum blade cutting depth for heavy trenching and scraping.
Articulated Frame Maneuverability: Combines 50° front wheel steering angle with a 23°articulated frame angle and 7.6 m turning radius for high agility on confined jobsites.
Multi-Jobsite Application: Ideal for highway subgrade leveling, mine haul road preparation, defense engineering, water conservancy, and seasonal snow clearing.
Technical Specifications
FAQ
All new motor graders come with a standard manufacturer’s warranty, typically valid for 12 months or 2,000 operating hours (whichever comes first). Extended warranty coverage for core components such as the engine, transmission, and drive axle may be available depending on the agreement.
Motor graders have relatively long bodies. Based on model dimensions and cost considerations, we offer the following shipping options:
Roll-on/Roll-off (Ro-Ro) Ship: The entire machine is driven onto and off the ship, ensuring damage-free transport and the highest level of safety.
Flat Rack Container: Loaded after dismantling the blade and some auxiliary components; suitable for regular liner services.
Breakbulk Ship: Suitable for bulk shipments of motor graders or ultra-heavy mining-grade models.
Container Disassembly Shipping (40HQ): Some small and medium-sized motor graders can be loaded into high-cube containers after removing the cab, front axle, and blade, significantly reducing ocean freight costs.
We can configure the optimal model based on your specific operating conditions:
Model and Drive Configuration: We offer rear-wheel drive (4x6 / 6x4) (cost-effective, suitable for general subgrade grading) and all-wheel drive (AWD / 6x6) (high traction, suitable for wet, slippery, muddy, and snowy conditions).
Work Equipment Options:
Moldboard: Available in 12-foot (3.66-meter) or 14-foot (4.27-meter) high-strength, wear-resistant models.
Front Dozer Blade: Suitable for light dozing and trenching operations at the front of the motor grader.
Mid/Rear Ripper/Scarifier: Used to break up hard surfaces, frozen ground, or hard rock layers.
We specialize in supplying brand-new motor graders from well-known brands such as XCMG (Xugong), SANY (Sany), SDLG (Lingong), SEM (Shangong Machinery), SHANTUI (Shantui), and LIUGONG (Liugong).
