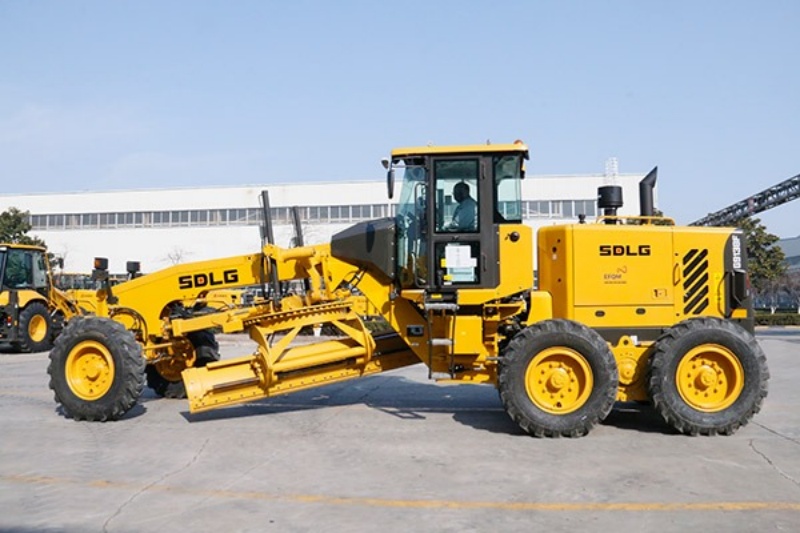

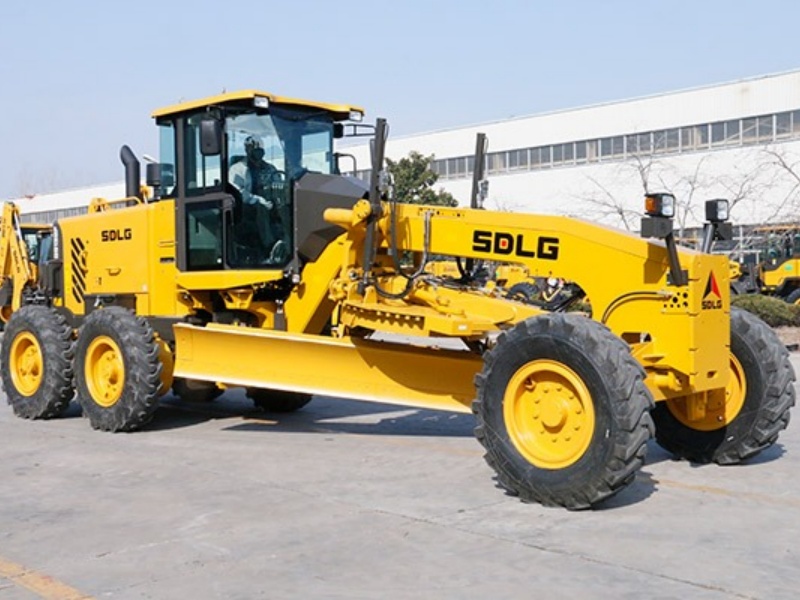

Brand New SDLG G9138F Motor Grader
Operating Weight: 12,100 kg
Engine Power:105 kW(140 hp)
Blade Capacity : 3,048 × 580 mm
Product Categories
leave a message
Product Overview
The Brand New SDLG G9138F is a versatile, high-precision 12.1-ton motor grader engineered for subgrade leveling, trenching, slope scraping, bulldozing, material mixing, and snow clearing across highways, airports, mine roads, and farmland development projects. Powered by a high-torque Deutz/BFM engine producing 105 kW (China Phase III compliant), the G9138F features an articulated frame with a tight 6.5 m turning radius for exceptional maneuverability. Outfitted with a high-strength 3,048 mm blade (575 mm cutting depth) and 75.4 kN maximum traction force, this compact grader delivers outstanding grading accuracy and low operating costs.
Key Product Features
High-Efficiency Powertrain: Powered by a reliable Deutz BF4M1013-15T3R/2 engine delivering 105 kW and 75.4 kN tractive effort for consistent grading performance across diverse soil types.
High Maneuverability & Articulated Frame: Features a 25°articulated frame steering angle, 50° front wheel steering angle, and a tight 6.5 m turning radius for easy operation on narrow roads and confined jobsites.
Versatile High-Precision Moldboard: Equipped with a 3,048 * 580 * 16 mm high-strength blade capable of a 575 mm deep cut for heavy ditching, scraping, and fine leveling.
Multi-Application Versatility: Suitable for road subbase leveling, slope formation, material spreading, farmland water conservancy, and seasonal snow discharge.
Technical Specifications
FAQ
All new motor graders come with a standard manufacturer’s warranty, typically valid for 12 months or 2,000 operating hours (whichever comes first). Extended warranty coverage for core components such as the engine, transmission, and drive axle may be available depending on the agreement.
Motor graders have relatively long bodies. Based on model dimensions and cost considerations, we offer the following shipping options:
Roll-on/Roll-off (Ro-Ro) Ship: The entire machine is driven onto and off the ship, ensuring damage-free transport and the highest level of safety.
Flat Rack Container: Loaded after dismantling the blade and some auxiliary components; suitable for regular liner services.
Breakbulk Ship: Suitable for bulk shipments of motor graders or ultra-heavy mining-grade models.
Container Disassembly Shipping (40HQ): Some small and medium-sized motor graders can be loaded into high-cube containers after removing the cab, front axle, and blade, significantly reducing ocean freight costs.
We can configure the optimal model based on your specific operating conditions:
Model and Drive Configuration: We offer rear-wheel drive (4x6 / 6x4) (cost-effective, suitable for general subgrade grading) and all-wheel drive (AWD / 6x6) (high traction, suitable for wet, slippery, muddy, and snowy conditions).
Work Equipment Options:
Moldboard: Available in 12-foot (3.66-meter) or 14-foot (4.27-meter) high-strength, wear-resistant models.
Front Dozer Blade: Suitable for light dozing and trenching operations at the front of the motor grader.
Mid/Rear Ripper/Scarifier: Used to break up hard surfaces, frozen ground, or hard rock layers.
We specialize in supplying brand-new motor graders from well-known brands such as XCMG (Xugong), SANY (Sany), SDLG (Lingong), SEM (Shangong Machinery), SHANTUI (Shantui), and LIUGONG (Liugong).
