Brand New LiuGong 936E Excavator

Operating Weight: 35,000 kg

Engine Power: 241 kW (323 hp)

Bucket Capacity: 1.6 m³

Explore the new LiuGong 936E crawler excavator with 241 kW Cummins power, 1.6 m³ bucket, and strong digging force for mining and roadwork.
WhatsApp
Get a Quote

Product Categories

leave a message

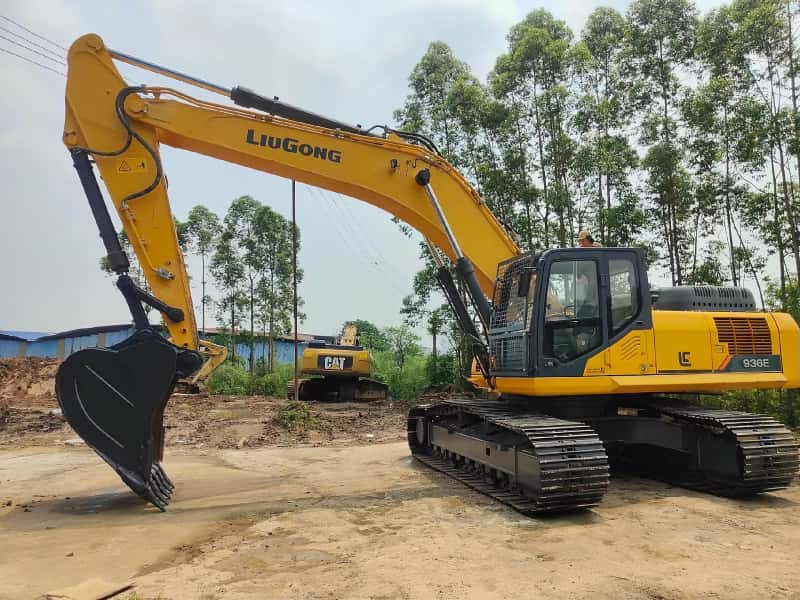

Brand New LiuGong 936E Excavator

Product Overview


The Brand New LiuGong 936E is a heavy-duty 35 to 37-ton E-series crawler excavator designed specifically for severe working conditions such as heavy quarrying, open-cast mining, oil & gas pipeline installation, and large-scale road construction. Powered by a high-output Cummins 6LTAA8.9-C325 Stage II engine outputting 241 kW (323 hp) @ 2,000 rpm, the 936E combines cooled-EGR engine technology with high-capacity negative flow hydraulics . Featuring 6 selectable working modes to match specific jobsite conditions, a temporary power boost function elevating bucket breakout force up to 252 kN, and a reinforced ROPS cab structure, this machine delivers maximized breakout performance and efficient fuel consumption.


936E Excavator


Key Product Features


  • Optimized Negative Flow Hydraulics: Advanced main control valve design speeds up front-end cylinder response while cutting hydraulic damper losses for faster cycle times and smooth multi-function control.

  • Fuel-Efficient Cummins Engine: Cummins 6LTAA8.9 engine with cooled-EGR technology balances high torque output with optimized fuel efficiency across tough duty cycles.

  • 6 Selectable Work Modes: Allows operators to tailor engine and hydraulic output to specific tasks to maximize productivity or lower fuel usage.

  • Maximum Digging & Power Boost: Hydraulic power boost function elevates system pressure to 34.3 MPa, generating up to 252 kN of bucket breakout force and 185 kN of arm digging force.

  • Robust Safety Cab & Structural Integrity: Built with a high-strength ROPS safety cabin structure (optional FOPS available) paired with a heavy-duty 6,400 mm boom and 3,200 mm arm.


Technical Specifications


ParameterStandard Specification
Operating Weight35,000 – 37,000 kg
Engine Power / Speed241 kW (323 hp) @ 2,000 rpm
Bucket Capacity1.6 m³
Engine ModelCummins 6LTAA8.9-C325
Emission StandardStage II
Bucket Breakout Force232 kN
Arm Breakout Force170 kN
Max. Digging Reach / Ground Reach11,100 mm / 10,900 mm
Max. Digging Depth7,340 mm
Max. Cutting Height / Dumping Height10,240 mm / 7,160 mm
Max. Vertical Wall Digging Depth6,460 mm
Boom / Arm LengthBoom: 6,400 mm / Arm: 3,200 mm
Min. Front Swing Radius4,465 mm
Travel Speed (High / Low)5.5 km/h / 3.4 km/h
Max. Swing Speed10.0 rpm
Hydraulic System Pressure34.3 MPa
Track Shoe Width600 mm
Overall Dimensions (L × W × H)11,167 × 3,190 × 3,530 mm
EC9DD94E01BB6193BC635B9FF97E3DB2

FAQ

A：

Depending on the machinery's dimensions, tonnage, and the shipping route to the destination port, we typically select the most cost-effective and secure transport solution:
Container Shipping (Standard/High Cube): Suitable for small excavators and medium-sized excavators with partially disassembled booms.
Flat Rack Container: Suitable for medium-sized excavators that exceed standard height or width limits.
Ro-Ro (Roll-on/Roll-off) Ship: Equipment is driven directly on and off without disassembly, offering the highest level of safety.
Breakbulk Ship: Suitable for large mining excavators or bulk shipments.

A：

All brand-new excavators come with a standard manufacturer's warranty, typically covering 12 months or 2,000 operating hours (whichever comes first). Extended warranty periods may be available upon agreement for certain brands or specific model series.

A：

Yes. In addition to the standard bucket, we can configure various high-quality OEM or compatible attachments based on your operational needs, including:
Hydraulic Breaker
Hydraulic Quick Coupler
Grapple (for timber or stone)
Auger
Vibratory Compactor / Ripper

A：

You can provide our professional team with details regarding your specific application (such as land clearing, municipal works, mining, or road construction) and your budget requirements. Based on factors like operating depth, bucket capacity, and engine emission standards (Tier 2 / Tier 3 / Tier 4 / Stage V), we will recommend the most cost-effective and high-value brands and models for your needs.

A：

Yes, we guarantee that all construction machinery supplied is brand-new, original equipment (100% brand new), accompanied by complete original factory inspection certificates, technical specifications, and the manufacturer's quality warranty.

A：

We specialize in supplying brand-new construction machinery from a wide range of globally renowned brands, including XCMG, SANY, SDLG, CAT, SHANTUI, DEVELON (formerly Doosan), ZOOMLION, and LIUGONG.
We offer all currently manufactured models, ranging from mini excavators (1–6 tons) and medium-sized excavators (13–30 tons) to heavy-duty mining excavators (over 35 tons).
