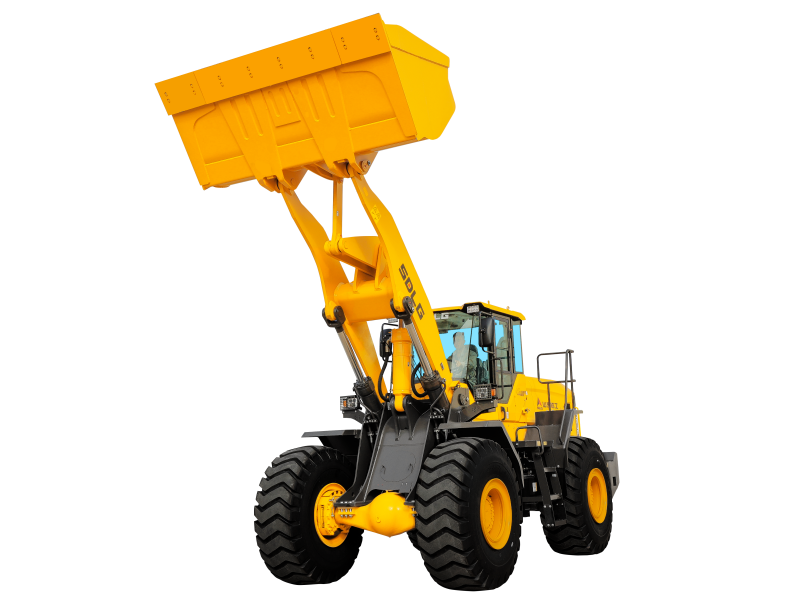

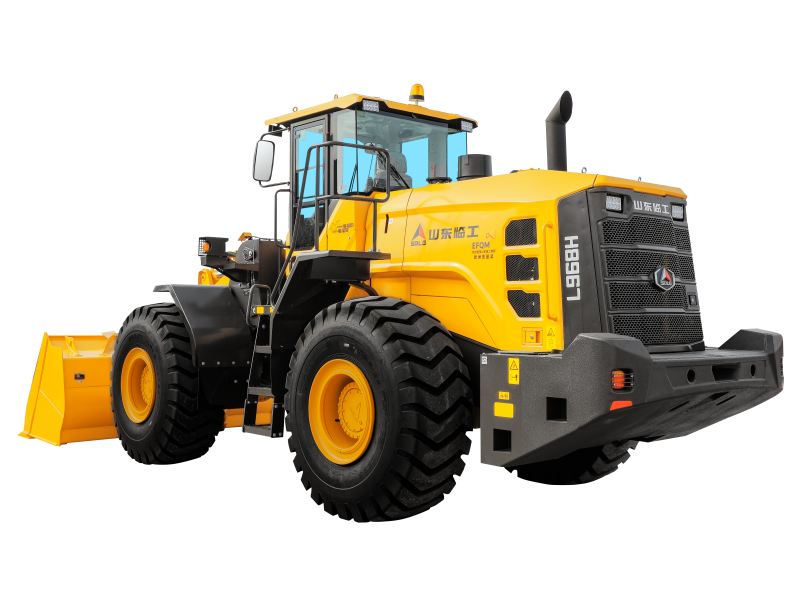

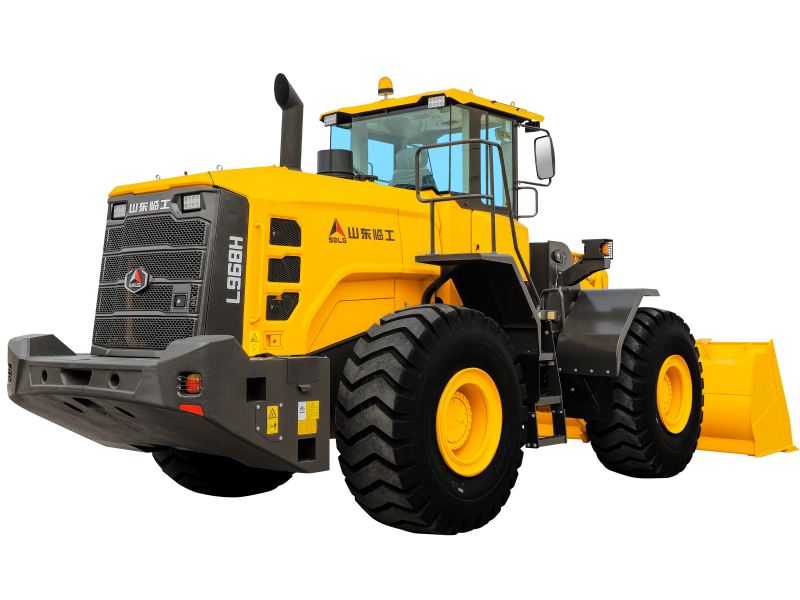

Brand New L968H Wheel Loader

Operating Weight: 20,850 kg

Engine Power: 178 kW(156hp)

Bucket Capacity: 3.5

Explore the Brand New L968H wheel loader with 178 kW power, 6.3-ton capacity, and strong breakout force for mining, ports, and quarry work.
Get a Quote
Brand New L968H Wheel Loader

Product Overview


The Brand New L968H is a high-capacity 6.3-ton heavy-duty wheel loader engineered specifically for heavy infrastructure, metal mining, port handling, steel mills, and aggregate quarries. Powered by a high-torque Weichai WP10G240E342 engine delivering 178 kW (China Stage III / GB 20891-2014 compliant), the L968H is built on a 3,500 mm long-wheelbase chassis for maximum stability under severe loading conditions. Outfitted with a versatile bucket options range (3.0–6.0 m³), exceptional breakout force, and high tractive effort (180 kN), this flagship heavy loader easily handles heavy metal ores, ore powders, and large stone materials.

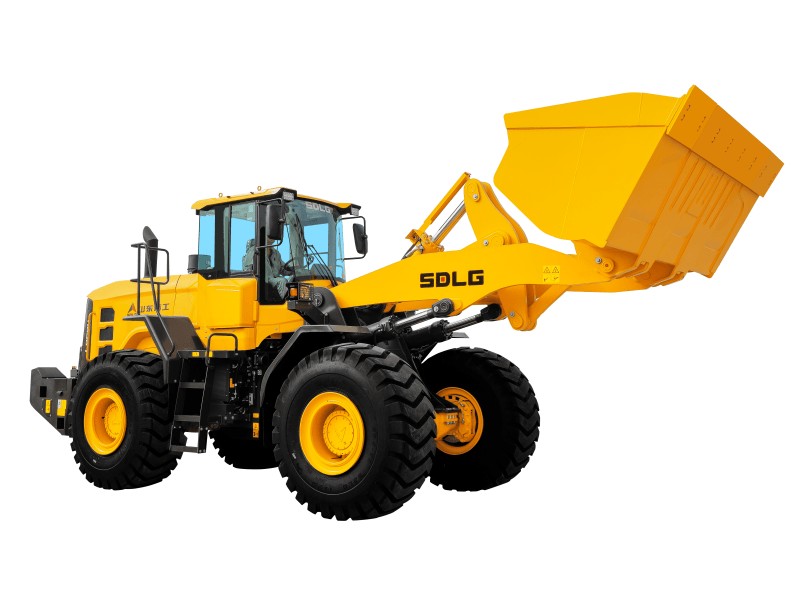

L968H Wheel Loader


Key Product Features


  • High-Power Mining Engine: Weichai WP10G240E342 engine producing 178 kW of high-torque output for continuous, heavy-duty operation in harsh mining and port environments.

  • Massive Digging & Breakout Force: Generates  215 kN breakout force and 180 kN tractive effort for easy bucket penetration into dense ores, unblasted rock, and compacted earth.

  • Long-Wheelbase High-Stability Chassis: Heavy-duty 3,500 mm centered wheelbase design ensures balanced axle load distribution, superior lifting stability, and high payload security.

  • Versatile Bucket Selection: Accommodates bucket capacities from 3.0 m³ up to 6.0 m³ for material density matching across rock, aggregate, coal, and bulk port loading operations.


Technical Specifications


ParameterStandard Specification
Bucket Capacity3.0~6.0 m³
Operating Weight20,850 kg
Rated Power178 kW
Rated Loading Capacity6,300 kg (6.3 Tons)
Engine ModelWeichai WP10G240E342
Emission StandardChina Stage III (GB 20891-2014)
Max. Tractive Force180 kN
Max. Breakout Force 215 kN
Wheelbase3,500 mm
Steering Angle38°
Max. Dumping Height3,170 mm
Dumping Reach / Distance1,230 mm
Fuel Tank Capacity350 L
External Dimensions (L × W × H)8,870 × 2,925 × 3,510 mm


EC9DD94E01BB6193BC635B9FF97E3DB2

FAQ

A:

All brand-new wheel loaders come with a standard manufacturer's warranty, typically covering 12 months or 2,000 operating hours (whichever comes first). Specific core components (such as the engine, transmission, and drive axles) are eligible for manufacturer-backed joint warranty or extended warranty coverage.

A:

Depending on the loader's overall dimensions and the requirements of the destination port, we offer the following shipping options:
Container Shipping (40HQ Container): Loaders weighing 3 tons or less (or those with the cab/tires removed) can fit into high-cube containers, saving on shipping costs.
Flat Rack Container: Suitable for medium-to-heavy loaders; requires no extensive disassembly.
Ro-Ro Ship (Roll-on/Roll-off): The loader is driven directly onto and off the vessel; ensures damage-free transport and offers the highest level of safety.
Breakbulk Ship: Suitable for bulk orders or large-sized loaders.

A:

We can recommend the optimal configuration based on your specific working environment (such as sand and gravel yards, mines, earthworks, ports and terminals, or agriculture, forestry, and livestock operations):
Standard Bucket: Suitable for general earthmoving and the loading/unloading of sand and gravel.
Rock Bucket: Features thickened lip and side plates and high-strength teeth; specifically designed for mining and highly abrasive operating conditions.
Light Material Bucket / High-Capacity Bucket: Suitable for handling low-density bulk materials such as coal, wood chips, and grain.
High Dump Bucket: Increases the dumping height; suitable for loading high-sided trucks or hoppers.

A:

Yes, all the construction machinery we sell is 100% brand-new and genuine. Each unit comes with an original manufacturer's certificate of conformity, a quality warranty, and complete technical documentation, and undergoes rigorous inspection and testing prior to shipment.

A:

We supply brand-new wheel loaders from globally renowned brands such as XCMG, SDLG, SANY, LIUGONG, CAT, SHANTUI, ZOOMLION, and DEVELON (formerly Doosan).
Our range covers models with rated capacities from 1.5 tons to 12 tons and above, with a focus on the market's most popular 3-ton, 5-ton, 6-ton, and 7-ton standard and heavy-duty models.
