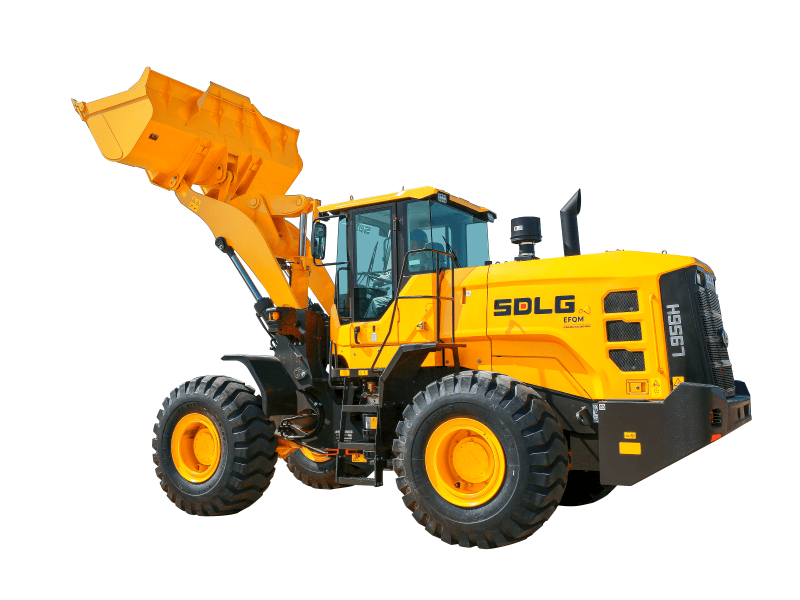

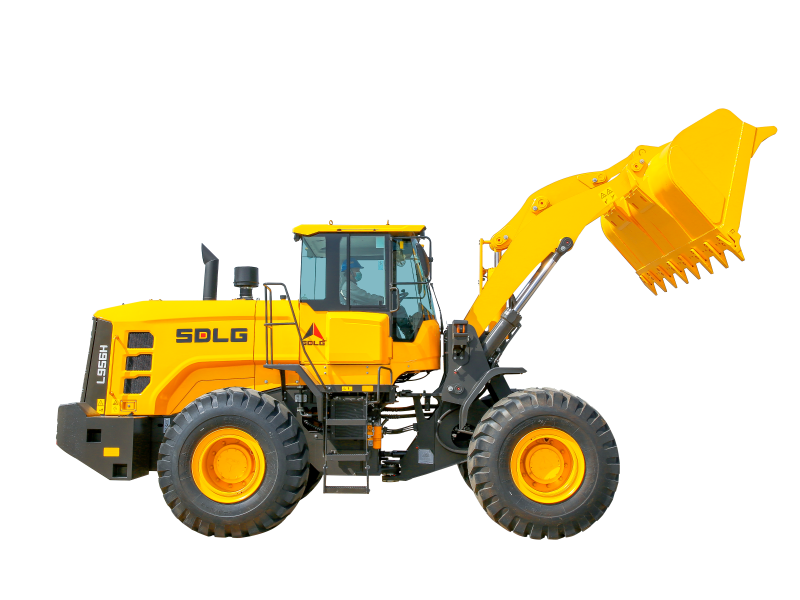

Brand New L956H Wheel Loader

Operating Weight: 17,220 kg

Engine Power: 162 kW(217 hp)

Bucket Capacity: 3.0 m³

Discover the Brand New L956H wheel loader with 5-ton capacity, 162 kW power, fast hydraulics, and fuel-saving performance for tough jobs.
Get a Quote
Brand New L956H Wheel Loader

Product Overview


The Brand New L956H is a high-efficiency 5.0-ton heavy-duty wheel loader engineered for utilities, heavy infrastructure construction, and quarry & aggregate operations. Powered by a fuel-efficient Weichai WD10G220E23 engine delivering 162 kW, the L956H achieves over 10% comprehensive energy savings. Built on a 3,300 mm heavy-duty wheelbase chassis with enhanced Volvo/SDLG joint-venture drive axles , a standard 3.0 m³ bucket, and a rapid 9.8-second total hydraulic cycle time, this machine provides massive breakout force (170 kN) and high tractive effort (165 kN) for demanding earthmoving applications.


L956H Wheel Loader


Key Product Features


  • Energy-Saving Powertrain: Low-speed Weichai WD10G220E23 engine delivers high torque with over 10% improved fuel efficiency, paired with a reliable SDLG planetary powershift transmission (2F/1R).

  • Heavy-Duty Axles & Frame: Jointly developed Volvo/SDLG enhanced drive axles with a 36-ton load-carrying capacity and double-swing-arm connection for high structural stability.

  • Load-Sensing Efficient Hydraulics: Equipped with Parker multi-way valves and Permco hydraulic pumps for smooth, responsive control and flexible load-sensing steering.

  • Large Lift Capacity & Optimized Bucket: Upgraded 5.0-ton rated payload with a 3.0 m³ trapezoidal bucket design that reduces digging resistance and boosts loading volume by 10%.

  • Ground-Level Service Access: Large side-opening steel engine hood with a wide swing angle allows quick, convenient maintenance and filter replacement.


Technical Specifications


ParameterStandard Specification
Bucket Capacity3.0 m³
Operating Weight17,220 kg
Rated Power162 kW
Rated Loading Capacity5,000 kg (5.0 Tons)
Engine ModelWeichai WD10G220E23
Emission StandardGB 20891-2007 (Tier 2 / Tier 3)
Max. Tractive Force165 kN
Max. Breakout Force170 kN
Transmission TypeSDLG Planetary Powershift (Forward 2 / Reverse 1)
Axle Load Capacity36 Tons
Wheelbase3,300 mm
Steering Angle36°
Max. Dumping Height3,060 mm
Dumping Reach / Distance1,230 mm
Hydraulic Cycle Time (Total)9.8 s
Fuel Tank Capacity300 L
External Dimensions (L × W × H)8,300 × 3,024 × 3,426 mm
EC9DD94E01BB6193BC635B9FF97E3DB2

FAQ

A:

All brand-new wheel loaders come with a standard manufacturer's warranty, typically covering 12 months or 2,000 operating hours (whichever comes first). Specific core components (such as the engine, transmission, and drive axles) are eligible for manufacturer-backed joint warranty or extended warranty coverage.

A:

Depending on the loader's overall dimensions and the requirements of the destination port, we offer the following shipping options:
Container Shipping (40HQ Container): Loaders weighing 3 tons or less (or those with the cab/tires removed) can fit into high-cube containers, saving on shipping costs.
Flat Rack Container: Suitable for medium-to-heavy loaders; requires no extensive disassembly.
Ro-Ro Ship (Roll-on/Roll-off): The loader is driven directly onto and off the vessel; ensures damage-free transport and offers the highest level of safety.
Breakbulk Ship: Suitable for bulk orders or large-sized loaders.

A:

We can recommend the optimal configuration based on your specific working environment (such as sand and gravel yards, mines, earthworks, ports and terminals, or agriculture, forestry, and livestock operations):
Standard Bucket: Suitable for general earthmoving and the loading/unloading of sand and gravel.
Rock Bucket: Features thickened lip and side plates and high-strength teeth; specifically designed for mining and highly abrasive operating conditions.
Light Material Bucket / High-Capacity Bucket: Suitable for handling low-density bulk materials such as coal, wood chips, and grain.
High Dump Bucket: Increases the dumping height; suitable for loading high-sided trucks or hoppers.

A:

Yes, all the construction machinery we sell is 100% brand-new and genuine. Each unit comes with an original manufacturer's certificate of conformity, a quality warranty, and complete technical documentation, and undergoes rigorous inspection and testing prior to shipment.

A:

We supply brand-new wheel loaders from globally renowned brands such as XCMG, SDLG, SANY, LIUGONG, CAT, SHANTUI, ZOOMLION, and DEVELON (formerly Doosan).
Our range covers models with rated capacities from 1.5 tons to 12 tons and above, with a focus on the market's most popular 3-ton, 5-ton, 6-ton, and 7-ton standard and heavy-duty models.
