Brand New L936H (Stage V) Wheel Loader

Operating Weight: 11,300 kg

Engine Power: 99 kW(132 hp)

Bucket Capacity: 2.1 m³

Discover the L936H Stage V wheel loader with 99 kW power, 2.1 m³ bucket, and strong breakout force for quarry, utility, and infrastructure work.
Get a Quote
Brand New L936H (Stage V) Wheel Loader

Product Overview


The Brand New L936H (Stage V) is a high-efficiency 3.5-ton compact wheel loader engineered for utilities, heavy infrastructure, and quarry & aggregate applications. Powered by a high-torque Weichai WP4.6N engine producing 99 kW , the L936H combines strong performance with environmentally friendly emissions. Equipped with a standard 2.1 m³ bucket, a rapid hydraulic system, and a 3-level power management mode , this loader offers exceptional fuel efficiency, superior tractive power , and breakout force  for versatile jobsite performance.

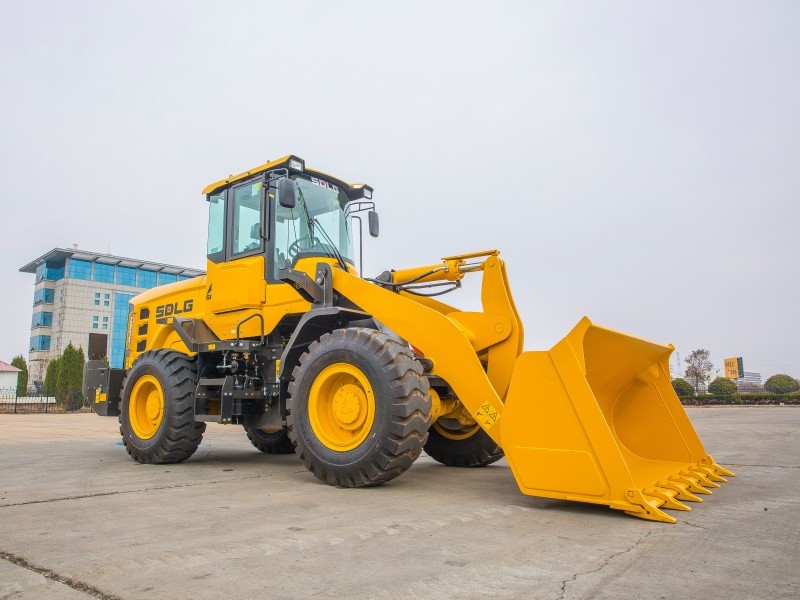

L936H Wheel Loader

Key Product Features


  • Euro 5 Compliant Powertrain: Weichai WP4.6NG135E670 engine meeting strict EU Stage V emission standards, fitted with high-precision oil and air filters for high reliability in dusty environments.

  • 3-Level Fuel-Saving Energy Modes: Selectable P , S (Medium Load), and E power modes allow operators to match engine output to jobsite demands for maximum fuel economy.

  • High Tractive & Breakout Force: Delivers 100 kN max tractive force and 96 kN max breakout force for easy bucket loading in hard aggregates and compacted soils.

  • Comfort & Convenience Cab: Features a high-grade multi-adjustable suspension seat, multi-functional color display, integrated HVAC climate control with heating/cooling storage box, and conveniently grouped controls.


Technical Specifications


ParameterStandard Specification
Bucket Capacity2.1 m³
Operating Weight11,300 / 11,550 kg
Rated Power99 kW
Rated Loading Capacity3,500 kg
Engine ModelWeichai WP4.6NG135E670
Emission StandardEU Stage V
Max. Tractive Force 100 kN
Max. Breakout Force 96 kN
Steering Angle37°
Wheelbase1,865 mm
Max. Dumping Height2,930 mm
Dumping Reach / Distance1,140 mm
Fuel Tank Capacity160 L
External Dimensions (L × W × H)7,285 × 2,520 × 3,340 mm
EC9DD94E01BB6193BC635B9FF97E3DB2

FAQ

A:

All brand-new wheel loaders come with a standard manufacturer's warranty, typically covering 12 months or 2,000 operating hours (whichever comes first). Specific core components (such as the engine, transmission, and drive axles) are eligible for manufacturer-backed joint warranty or extended warranty coverage.

A:

Depending on the loader's overall dimensions and the requirements of the destination port, we offer the following shipping options:
Container Shipping (40HQ Container): Loaders weighing 3 tons or less (or those with the cab/tires removed) can fit into high-cube containers, saving on shipping costs.
Flat Rack Container: Suitable for medium-to-heavy loaders; requires no extensive disassembly.
Ro-Ro Ship (Roll-on/Roll-off): The loader is driven directly onto and off the vessel; ensures damage-free transport and offers the highest level of safety.
Breakbulk Ship: Suitable for bulk orders or large-sized loaders.

A:

We can recommend the optimal configuration based on your specific working environment (such as sand and gravel yards, mines, earthworks, ports and terminals, or agriculture, forestry, and livestock operations):
Standard Bucket: Suitable for general earthmoving and the loading/unloading of sand and gravel.
Rock Bucket: Features thickened lip and side plates and high-strength teeth; specifically designed for mining and highly abrasive operating conditions.
Light Material Bucket / High-Capacity Bucket: Suitable for handling low-density bulk materials such as coal, wood chips, and grain.
High Dump Bucket: Increases the dumping height; suitable for loading high-sided trucks or hoppers.

A:

Yes, all the construction machinery we sell is 100% brand-new and genuine. Each unit comes with an original manufacturer's certificate of conformity, a quality warranty, and complete technical documentation, and undergoes rigorous inspection and testing prior to shipment.

A:

We supply brand-new wheel loaders from globally renowned brands such as XCMG, SDLG, SANY, LIUGONG, CAT, SHANTUI, ZOOMLION, and DEVELON (formerly Doosan).
Our range covers models with rated capacities from 1.5 tons to 12 tons and above, with a focus on the market's most popular 3-ton, 5-ton, 6-ton, and 7-ton standard and heavy-duty models.
